What’s Known

A single gallbladder with a double cystic duct is a relatively rare congenital malformation. Up until late 2017, only 20 patients had been reported with duplicated cystic ducts. Misdiagnosis of this condition may lead to unwanted consequences such as bile duct injury and more complications.

What’s New

In this report, we described a patient with a duplicated cystic duct, originating from the common bile duct and converging in the Hartmann pouch of the gallbladder, who underwent cholecystectomy. Endosonography was performed before the procedure but showed no malformation. A successful laparoscopic cholecystectomy was performed.

Introduction

A single gallbladder with a double cystic duct is a relatively rare congenital malformation. ¹ Up until late 2017, only 20 patients had been reported with duplicated cystic ducts in the English literature. ² The preoperative diagnosis of a duplicated cystic duct is difficult, and the majority of the cases are found intraoperatively. ³ In 1956, Caster and Flannery ⁴ studied 101 cases with the congenital abnormalities of the gallbladder and categorized double cystic ducts into three types according to the site of the drainage. The extreme rarity of this variation poses a challenge to surgeons, and missing the case may lead to unwanted consequences such as bile duct injury and postoperative morbidities. ⁵ However, conducting a sensitive imaging test may help prevent damage in suspected patients.

In this report, we describe a patient with a duplicated cystic duct, originating from the Hartmann pouch of the gallbladder and converging in the common bile duct (CBD), who underwent cholecystectomy. Endosonography was performed before the procedure but failed to demonstrate any malformation. A successful laparoscopic cholecystectomy was performed.

Case Presentation

A 58-year-old Caucasian overweight woman without any previously diagnosed diseases presented to the Department of Surgery, Firoozgar Hospital, Tehran, Iran, in May 2019. She had abdominal pain that was predominantly localized in the epigastric area and the right upper quadrant approximately from 10 days before admission. The pain was constant and radiated to the back, suggesting pancreatitis. The patient mentioned episodes of fever and chills accompanied by nausea and vomiting. She noted the loss of appetite, food intolerance, and icteric sclera of a few days’ duration. She had no history of previous interventions or surgeries. Written informed consent was obtained from the patient for reporting her data.

Clinical Findings

Physical examination revealed generalized mild icterus. The patient had mild tenderness in the right upper quadrant and the epigastrium, and the Murphy sign was positive.

Diagnostic Assessments

Laboratory studies showed leukocytosis (white blood cell count=13.9 (4–10×10³ mm³), mildly elevated levels of liver enzymes (aspartate transaminase=58 U/I [female<31, male<33], alanine aminotransferase=63 U/I [female<31, male<33], and alkaline phosphatase=706 IU/L [up to 270]), a total bilirubin level of 6.9 mg/dL (0.2–1.2), a direct bilirubin level of 3.8 mg/dL (0.1–0.7), an amylase level of 164 U/I (<100), and a C-reactive protein level of 65 mg/L (up to 5). Primarily, cholangitis was highly suspected. Additionally, the CBD was mildly dilated (the largest diameter of the CBD=7.5 mm in the proximal part), and it contained no stones, sludge, or lesions. The pancreatic duct contour and diameter, as well as the pancreatic head, body, and ampulla, appeared normal. Further, the gallbladder contained sludge and microlithiasis. Passed stone, followed by transient pancreatitis, was suspected. The patient was recommended to undergo cholecystectomy.

Therapeutic Intervention

The patient was taken into the operating room and prepared for laparoscopic cholecystectomy. Four portal accesses were inserted, and CO2 was used for the insufflation of the abdominal cavity. Two cystic ducts were seen in the Calot triangle: one originating from the choledochal duct and the other from the common hepatic duct (figure 1). Both cystic ducts and the artery were dissected free and secured. A plastic hemolock clip was applied to the artery, and both cystic ducts were clipped using three hemolocks (figure 1-B). Before hemolock application on the second cystic duct, to perform a safe operation, we carefully dissected the gallbladder antegradely from the fundus to the suspected second cystic duct (figure 2). However, the gall bladder was perforated during the procedure, and its contents spilled into the abdominal cavity. Washing with normal saline was performed multiple times to remove the gallbladder contents from the cavity completely. Ultimately, all portal defects were repaired.

Figure 1. The suspected second cystic duct was found accidentally during the surgery.

Figure 2. Safe confirmation of the second cystic duct was done after the antegrade dissection of the gallbladder from the liver.

A Nelaton catheter was passed slightly through both ducts, which converged into the infundibulum of the excised gallbladder (figure 3).

Figure 3. A Nelaton catheter was passed after the antegrade dissection of the gallbladder to confirm the second duct. The excised gallbladder showed two cystic ducts converging into the infundibulum.

Postoperatively, the patient received an empirical antibiotic regimen for infection prophylaxis for three days. The laboratory tests, including liver enzymes and the bilirubin level, became normal and she was discharged on day three after the operation with a good diet tolerance.

Follow-up and Outcomes

Clinical follow-up was done two weeks postoperatively, and the patient was in good health condition. She had no complaints of pain, fever, or icterus. A postoperative magnetic resonance cholangiopancreatography (MRCP) was performed, and no abnormal findings except mild dilation at the central intrahepatic bile duct, and the CBD were reported (figure 4).

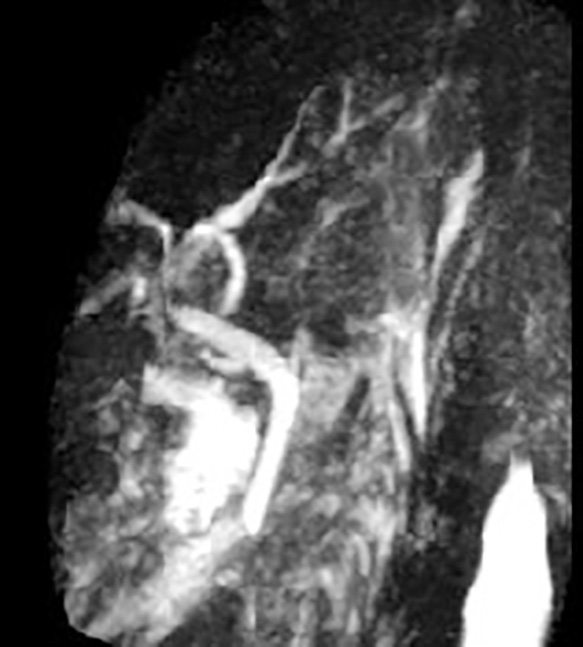

Figure 4. Postoperative magnetic resonance cholangiopancreatography confirmed that the operation was performed safely with no bile duct damage.

Discussion

Bile duct injury is a serious and common complication in patients undergoing laparoscopic cholecystectomy. The intraoperative detection of cystic duct anomalies and more specifically, a duplicated cystic duct insofar as it is an aberrant type, is a daunting challenge to surgeons. Postoperative bile leakage is a serious complication; it is reported in approximately 2% of patients. ⁶ Other possible complications include conversion into open surgery, bile fistulae, and liver cyst infection. ³

The anatomical distinctions of cystic ducts and gallbladders were first reported by Edward Boyden in the early 1920s. ⁷ Later, Caster and Flannery classified cystic duct duplications into three subgroups: H type, wherein cystic ducts join the CBD at two different sites; Y type, wherein cystic ducts join each other and then drain into the CBD; and the trabecular type, wherein one cystic duct joins the CBD and the other enters the liver parenchyma. ⁴

Duplicated cystic ducts are more common among females. ¹ This could be because of the higher incidence of symptomatic cholelithiasis and cholecystectomy in the female gender. It has been reported that in 80% of patients, a double gallbladder is also present. ⁵ The age at the diagnosis of a double cystic duct varies between newborns and about 75 years. ¹ In a newborn, a double gallbladder is accompanied by vertebral defects, anal atresia, cardiac defects, tracheoesophageal fistulae, renal anomalies, and limb abnormalities (VACTERL). ⁸

In the current case, the patient had a single gallbladder with two cystic ducts that had two separate origins and drained separately into the CBD, presenting like a Y type variation (figure 5).

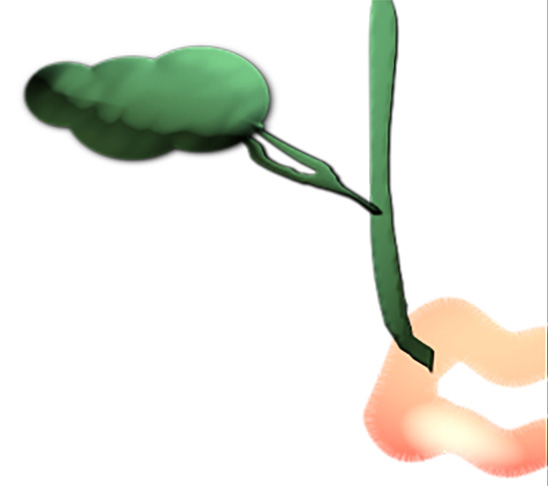

Figure 5. A schematic view of the current case is illustrated.

Ultrasonography usually fails to delineate the anatomical variations of the cystic duct. ^{1, 9} In our case, neither abdominal sonography nor EUS raised suspicions of an abnormality.

Munie and others summarized case reports of 20 patients with duplicated cystic ducts from 1961 to 2019 in the English literature. ² They reported that 75% of the patients were female and the H type variation was the most common type. Among the patients who underwent preoperative imaging assessments, comprised of EUS, endoscopic retrograde cholangiopancreatography, and intraoperative cholangiography (IOC), malformations were diagnosed only in three out of seven patients, preoperatively. In the current study, EUS results were not suggestive of cystic duct abnormalities. Unfortunately, we did not perform IOC.

Buddingh and others utilized IOC and the method of the critical view of safety photographs to assess the biliary anatomy. ¹⁰ They demonstrated that IOC images had superior results in the documentation of the biliary anatomy during the surgery by comparison with the critical view of safety (conclusive in 57% vs 27%; P<0.001). Both methods had limitations in visualizing the biliary anatomy and were not satisfactory.

Sarawagi and others studied the imaging features of cystic duct variations in 198 patients using MRCP and reported that about half of their patients had normal lateral insertions of the cystic duct in the middle third of the CBD. ⁹ Additionally, medial, low, and high insertions were less common. The authors reported no case with double cystic ducts and concluded that MRCP was an ideal imaging technique for determining the cystic duct anatomy.

On the whole, despite all the limitations of imaging modalities, it is generally accepted that performing preoperative and intraoperative imaging studies is mandatory in suspected patients and may determine the abnormality. Notwithstanding the normal results of imaging reports, the surgeon should be aware of possible missed anatomical variations during the procedure. Because of the lack of MRCP facilities in our center, we could not perform it before surgery. Post-discharge MRCP revealed normal results.

The failure to perform preoperative MRCP and IOC was the main limitation of our study. MRCP is reported as an optimal imaging modality for cystic duct malformations. However, as preoperative EUS and endoscopic retrograde cholangiopancreatography failed to reveal any anomaly, we neither performed MRCP nor made cholangiography devices ready. Therefore, to confirm our observations, we passed a Nelaton through the ducts.

Take-away Lessons

Duplicated cystic ducts are extremely rare variations. It appears that imaging techniques are not sensitive and specific enough to detect the abnormality pre/intraoperatively. Preoperative MRCP and IOC may help to determine cystic duct variations. Nonetheless, it is important to keep a watchful eye on the anatomy during the surgery, even with normal imaging findings.

Conclusion

This study highlights the point that despite all recent advances in imaging techniques, there are still limitations in visualizing anatomic variations in the cystic duct. It is, therefore, essential to be deeply observant of the anatomy during the surgery even if preoperative imaging tests reveal normal findings.
