Iranian Journal of Medical Sciences

Document Type : Original Article(s)


1 Department of Pharmacology, School of Medicine, Shiraz University of Medical Sciences, Shiraz, Iran

2 Medicinal and Natural Chemistry Rresearch Center, Shiraz University of Medical Sciences, Shiraz, Iran

3 Stem Cells Technology Research Center, Shiraz University of Medical Sciences, Shiraz, Iran

4 Department of Oral and Maxillofacial Surgery, School of Dentistry, Shiraz University of Medical Sciences, Shiraz, Iran

5 Transplant Research Center, Shiraz University of Medical Sciences, Shiraz, Iran

6 Autoimmune Diseases Research Center, Shiraz University of Medical Sciences, Shiraz, Iran


Background: Osteoarthritis (OA) is a degenerative joint disease that causes a variety of adverse health effects. Considering the need to identify additional effective therapeutic options for OA therapy, we investigated the effect of co-injection of apigenin and synovial membrane-derived mesenchymal stem cells (SMMSCs) on OA in male rats’ knee joints.
Methods: The study was performed in 2019 at the Department of Pharmacology, Shiraz University of Medical Sciences, Shiraz, Iran. Anterior cruciate ligament transection (ACLT) was used to induce OA. For three weeks, male Sprague-Dawley rats (eight groups, n=6 each) were treated once-weekly with intra-articular injections of apigenin alone or in combination with SMMSC (three million cells), phosphate-buffered saline, or hyaluronic acid. After three months, the interleukin 1 beta (IL-1β), tumor necrosis factor-alpha (TNF-α), superoxide dismutase (SOD), and malondialdehyde (MDA) levels were measured in the cartilage homogenate. The expression of extracellular matrix (ECM) components including collagen 2a1, aggrecan, IL-1β, TNF-α, inducible nitric oxide synthase (iNOS), transcription factor SOX-9, and matrix metalloproteinases 3 and 13 were assessed using real-time polymerase chain reaction (RT-PCR) analysis. Radiological evaluation and histopathological assessment were used to evaluate the knees.
Results: Levels of TNF-α (P=0.009), MDA (P>0.001), and IL-1β (p <0.001) decreased and the level of SOD increased (P=0.004) in the apigenin 0.3 µM with SMMSCs group. RT-PCR analysis indicated that IL-1β in the apigenin 0.3 µM with SMMSCs group reduced significantly (p <0.001). This group also exhibited increased expression levels of SOX-9, collagen 2a1, and aggrecan (p <0.001).
Conclusion: Apigenin may have supplementary beneficial effects on cell therapy in a rat model of OA due to its possible effect on the reduction of oxidative stress, suppression of inflammation, and promotion of production of ECM components.


What’s Known

Mesenchymal stem cells have been widely used as a therapeutic approach in the cell-based therapy of osteoarthritis, with promising effects on cartilage regeneration. Apigenin acts as a free radical scavenger and anti-inflammatory agent.

What’s New

The co-injection of apigenin and mesenchymal stem cells to the knee will increase the success of osteoarthritis therapy. Apigenin effects are possibly mediated through the reduction of oxidative stress, suppression of inflammation, and promotion of production of extracellular matrix components.


Osteoarthritis (OA) is the leading cause of functional limitations and disability worldwide that adversely impacts patients’ quality of life. The disease is associated with degeneration of the cartilage, which causes chronic joint inflammation, leading to arthritis. 1 It has been shown that oxidative stress signaling pathways may play an important role in the pathogenesis of OA. 2 Inflammatory inducers initiate the production of inflammatory mediators such as tumor necrosis factor-alpha (TNF-α), interleukin (IL)-1β, IL-8, adipokines, Toll-like receptor (TLR), and nitric oxide (NO). 3 IL-1β decreases the expression of type II collagen and increases the expression of nitric oxide-synthase (NOS), cyclooxygenase (COX)-2, and matrix metalloproteinases (MMPs). 4 These events accelerate destructive responses affecting extracellular matrix (ECM) components, catabolic activation, and apoptosis. 5

There is no effective cure for OA, and available therapies mostly focus on managing symptoms. Regeneration of the damaged articular cartilage in OA has been a challenging topic. 2 Recently, mesenchymal stem/stromal cells (MSCs) have been introduced as the preferred alternative, since they do not have the drawbacks of other methods. The concept of using MSCs is based on the fact that synovial membrane-derived MSCs (SMMSCs) can differentiate into chondrocytes and regenerate the damaged regions due to various trophic factors. Several in vivo assessments (animal and human studies) confirmed the high potency of MSCs in cartilage repair. 3 , 6 , 7

It has been shown that combination therapy could be a potential therapeutic approach to address OA symptoms. 8 Considering the role of a wide range of molecular mechanisms in the pathogenesis of OA, the use of combined agents that target these pathways is suggested. 9 For example, it has been shown that elevated oxidative stress markers are associated with the pathogenesis of OA. Hence, the use of antitoxin factors is effective in OA therapy. 9

Flavonoids, a polyphenolic class of phytochemicals, were shown to control inflammatory arthritis due to their antioxidant, anti-inflammatory, and immunomodulatory properties. 10 Apigenin (4′,5,7-trihydroxyflavone) is a flavonoid found in fruits and vegetables with a wide spectrum of pharmacological activities including antioxidant, anti-inflammatory, and anti-cancer properties. 11 The anti-inflammatory activity of apigenin is also linked to its inhibitory effect on the production of cytokines such as IL-4, IL-5, or IL-13, and inhibition of NOS and COX2 enzymes in T and B cells. 12

Considering the need to identify additional effective therapeutic options for OA treatment, we investigated the effect of the co-injection of apigenin and SMMSCs on OA in male rats’ knee joints.

Materials and Methods

Male Sprague-Dawley rats (n=48), weighing 200±20 g and aged 10-12 weeks were obtained from the Central Animal House of Shiraz University of Medical Sciences (Shiraz, Iran). The rats were housed in a standard vivarium, fed a standard diet, and water ad libitum, and kept under standard conditions (12-hour light:dark cycle, temperature 20-25 ºC, and humidity 25-35%). Experimental protocols were according to the Guide for the Care and Use of Laboratory Animals. The study was approved by the Ethics Committee of Shiraz University of Medical Sciences, Shiraz, Iran (code: IR.SUMS.REC.1397.228).

The rats were randomly divided into eight groups (n=6 per group), and anterior cruciate ligament transection (ACLT) 13 was used to induce OA, except for the sham group. For three weeks, the rats were treated once-weekly with intra-articular injections of apigenin alone or in combination with either SMMSCs (three million cells), phosphate-buffered saline (PBS), or hyaluronic acid (H).

Sham: No intervention+treatment with PBS

OA (Negative control): OA+treatment with PBS

Positive control: OA+treatment with H

OA+treatment with MSCs

OA+treatment with apigenin 0.1 µM

OA+treatment with MSCs and apigenin 0.1 µM

OA+treatment with apigenin 0.3 µM

OA+treatment with MSCs and apigenin 0.3 µM

Induction of ACLT

The rats were intraperitoneally anesthetized using 40 mg/kg ketamine (KetaVed®, Vedco, St. Joseph, MO, USA) and 10 mg/kg xylazine (Rompun; Bayer AG, Leverkusen, Germany). After shaving and disinfecting the rats, the left medial parapatellar was incised to expose the knee joint. The joint cavity was revealed and the anterior cruciate was exposed through knee flexion. An anterior cruciate ligament (ACL) was detached and the rupture was confirmed using the drawer test. The cartilage surface was not damaged during the operation. In the sham group, ACL was exposed through a small medial parapatellar incision, the joint was washed with saline, and then the incision was sutured. Flunixin (2.5 mg/kg/day; Banamine®, Merck Animal Health USA) was subcutaneously injected daily for three days for postsurgical analgesia. The rats were given supplemental heat and closely monitored until full recovery from anesthesia. They were also monitored daily for pain, infection, and other postoperative complications. All procedures were approved by the Animal Welfare Committee.

Preparation of SMMSCs

Preparation of SMMSCs was performed according to the previously reported procedure. 14

Cell-Surface Marker Analysis

SMMSCs were confirmed by evaluating the expression of MSCs specific surface markers (including CD34, CD45, CD29, CD73) using RT-PCR analysis. 15 Cultured cells were harvested, and total RNA was isolated using an RNA extraction kit (Qiagen, USA) according to the manufacturer’s protocol. At the end of the isolation process, the concentration of samples was determined with a spectrophotometer (Nanodrop; Thermo Fisher Scientific, Wilmington, DE, USA). RevertAid™ First Strand cDNA Synthesis kit (Thermo Fisher Scientific Inc., Waltham, MA, USA) was used for cDNA synthesis. Reverse transcriptionquantitative polymerase chain reaction (RTqPCR) was performed using ABI Biosystems™ StepOne™ and RealQ Plus 2x Master Mix Green (Ampliqon A/S, Odense, Denmark). The β2M housekeeping gene was used as the internal control of qPCR reactions. Reactions were amplified in a thermal cycler (Applied Biosystems, Thermo Fisher Scientific Inc., USA) with thermal conditions set at 94 °C for 10 min followed by 40 cycles of 15 second at 94 °C, 60 second at 58 °C, a final extension of 7 min at 72 °C, and melt curve analysis of 55~95 °C at 0.5 °C per five second. The analysis of real-time PCR data was performed using the 2-ΔΔCt method 16 with target mRNA expression in each sample normalized against the endogenous control.

Differentiation Assay

To induce differentiation, SMMSCs were seeded into 6-well plates at a density of 5×104 per well, and the medium was replaced after 24 hours with either adipogenic, osteogenic (R&D Systems), or fresh media. After three weeks, SMMSCs were washed twice in PBS, fixed for 30 min in 10% formaldehyde, and then washed with water twice. Then, SMMSCs were stained with fresh Oil Red O solution (0.5%) or Alizarin Red S solution (1.4%) for 40 min at room temperature.

Intra-Articular Injection

Two months after surgery, animals were checked for the induction of the ACLT model using radiological imaging. For three weeks, the rats were treated once-weekly with intra-articular injections of apigenin (Sigma Aldrich, 10798-100MG) alone or in combination with either SMMSCs or PBS vehicle under general anesthesia. Injections were carried out in both knees in a volume of 50 μl using Hamilton syringes.

Assessment of Cell Viability with MTT Assay

MTT assay was used to evaluate the potential toxicity of apigenin on the cells. SMMSCs were plated into 96-well plates at a density of 5×103 per well. After 24 hours, the media were replaced with fresh media enriched with different concentrations of apigenin (0, 0.1, 0.2, 0.3, 0.4, and 0.5 µM). After 24, 48, and 72 hours, cell viability was measured by MTT assay. After incubation with MTT solution (5 mg/ml) at 37 °C and 5% CO2 for four hours, the supernatant was discarded and dimethylsulphoxide (DMSO) was added to each well. Cell viability was calculated as the ratio of optical density (OD) of each concentration point, measured at 570 nm, relative to that of the negative control.


Knee joints were examined under general anesthesia using a Dry Imager (Fujifilm DryPix 6000 smart Tokyo, Japan) to evaluate the severity of OA before and after treatment. Radiographic grading was based on previously published numerical rating scales. 17

Knee Joint Specimen

After imaging, animals were sacrificed by cervical dislocation. Knee joints were exposed and dissected aseptically from superior and inferior tissues. Some specimens were fixed in 10% paraformaldehyde for histopathological study, and some others were immediately frozen in liquid nitrogen and stored at -80 °C for enzyme-linked immunosorbent assay (ELISA) and PCR analysis.


IL-1β, TNF-α, and superoxide dismutase (SOD) levels in the cartilage homogenate (SpeedMill PLUS; Analytik Jena, Germany) were measured using commercially available ELISA kits (Abcam, USA), according to the manufacturer’s instructions. OD was measured at 450 nm using a microplate reader (POLARstar, BMGLabtech, Ortenberg, Germany). Data were normalized by detecting the protein concentration of samples using bicinchoninic acid (BCA) protein assay kit (Beyotime, Shanghai, China).

Malondialdehyde (MDA) Measurement

MDA is a product of lipids peroxidation and is known as a marker of oxidative stress intensity. MDA can be quantified based on its reaction with thiobarbituric acid, a chromogenic reagent. 18 Briefly, the fresh tissue homogenate was placed into a 1.5 ml centrifuge tube with 1.15% potassium chloride solution. Thiobarbituric acid reactive substance (TBARS) assay reagent (2000 μl) was then added to the tissue homogenate (500 μl) and the solution was heated in a boiling water bath for 45 min. After cooling, 2 ml n-Butanol was added to each tube. The homogenate was then centrifuged and the supernatant was examined using a Thermo Spectronic Genesys five microplate reader (Labequip, Ontario, Canada) for colorimetric assay (OD 532 nm).

RT-qPCR Assessment

Real-time PCR was conducted to quantify changes in the mRNA levels of different genes, including collagen 2a1, aggrecan, IL1β, TNF-α, iNOS, SOX-9, MMP-3, and MMP-13. The β2M gene was used as a housekeeping gene. Briefly, cartilage tissue was collected from the femoral and tibial condyles of each knee joint and ground using a mortar and pestle. Total RNA was isolated and analyzed as described above. The sequence of specific primers is presented in table 1.

Gene name Accession number Primer sequence (5’ 3’) Size (bp)
CD34 NM_001107202.2 Forward: AGCCATGTGCTCACACATCA 257
CD45 NM_001109887.2 Forward: CCAAGAGTGGCTCAGAAGGG 450
CD90 NM_012673.2 Forward: GACCCAGGACGGAGCTATTG 177
CD73 NM_021576.2 Forward: TGCATCGATATGGCCAGTCC 208
Col2a1 NM_012929.1 Forward: CCAGAGTGGAAGAGCGGAGAC 286
IL1β NM_031512.2 Forward: GGAGAGACAAGCAACGACAA 123
MMP-13 NM_133530.1 Forward: CAAGCAGCTCCAAAGGCTAC 130
Table 1.Primer sequences for reverse transcription polymerase chain reaction

Histopathological Evaluation

Histopathological evaluation on full-thickness sagittal sections of the cartilage in the weight-bearing area of the medial femoral condyle was performed according to the previously reported procedure. The samples were graded as normal (0), slight reduction (1), moderate reduction (2), severe reduction (3), and no dye (4). 19 , 20

Statistical Analysis

Data were presented as mean±SEM of multiple repeats of the same experiment (n=6). Statistical analysis was performed using GraphPad Prism software (version 6.0) with one-way analysis of variance (ANOVA) followed by Tukey post hoc test and Kruskal-Wallis with Dunn’s post hoc test. Statistical significance levels were P<0.05.


The results of the MTT assay showed that apigenin caused a dose- and time-dependent reduction in viable SMMSCs at higher concentrations than 0.3 µM. Importantly, no toxic effect was observed after treatment with lower concentrations of apigenin ( figure 1). Based on these results, apigenin concentrations of 0.1 µM (A0.1) and 0.3 µM (A0.3) were selected for subsequent experiments.

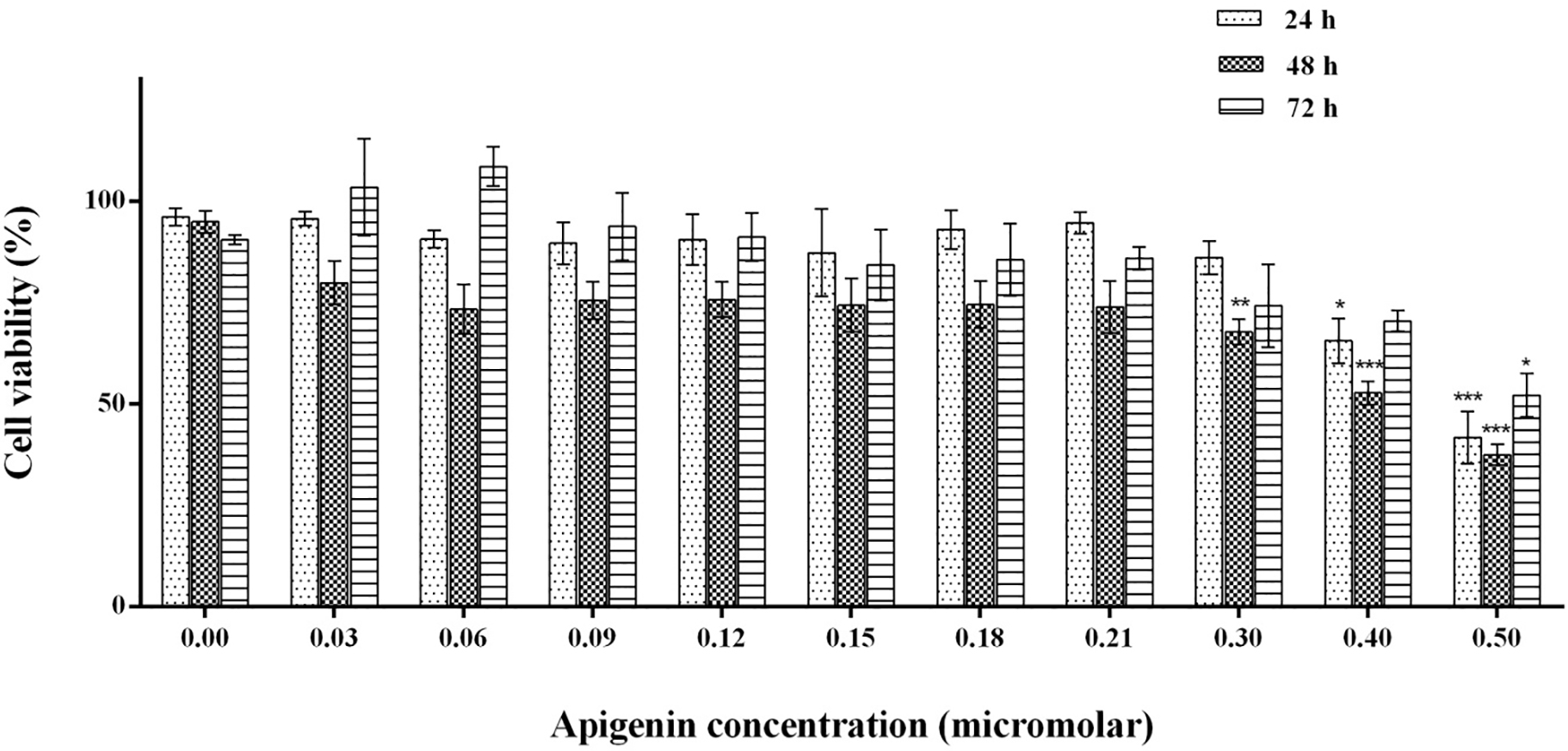

Figure 1. Cytotoxic effect of apigenin on SMMSCs examined using MTT assay. Data are expressed as the mean±SEM of six independent replicates. One-way analysis of variance (ANOVA) was used to evaluate significant differences between the groups. *P<0.05; **P<0.01; ***P<0.001

Based on radiography results, in all treated groups, a reduction in the global OA score compared to pre-treatment was observed. The OA+H, OA+MSCs, and OA+MSCs+A0.3 groups exhibited a significant reduction in the global OA score (figures 2 and 3).

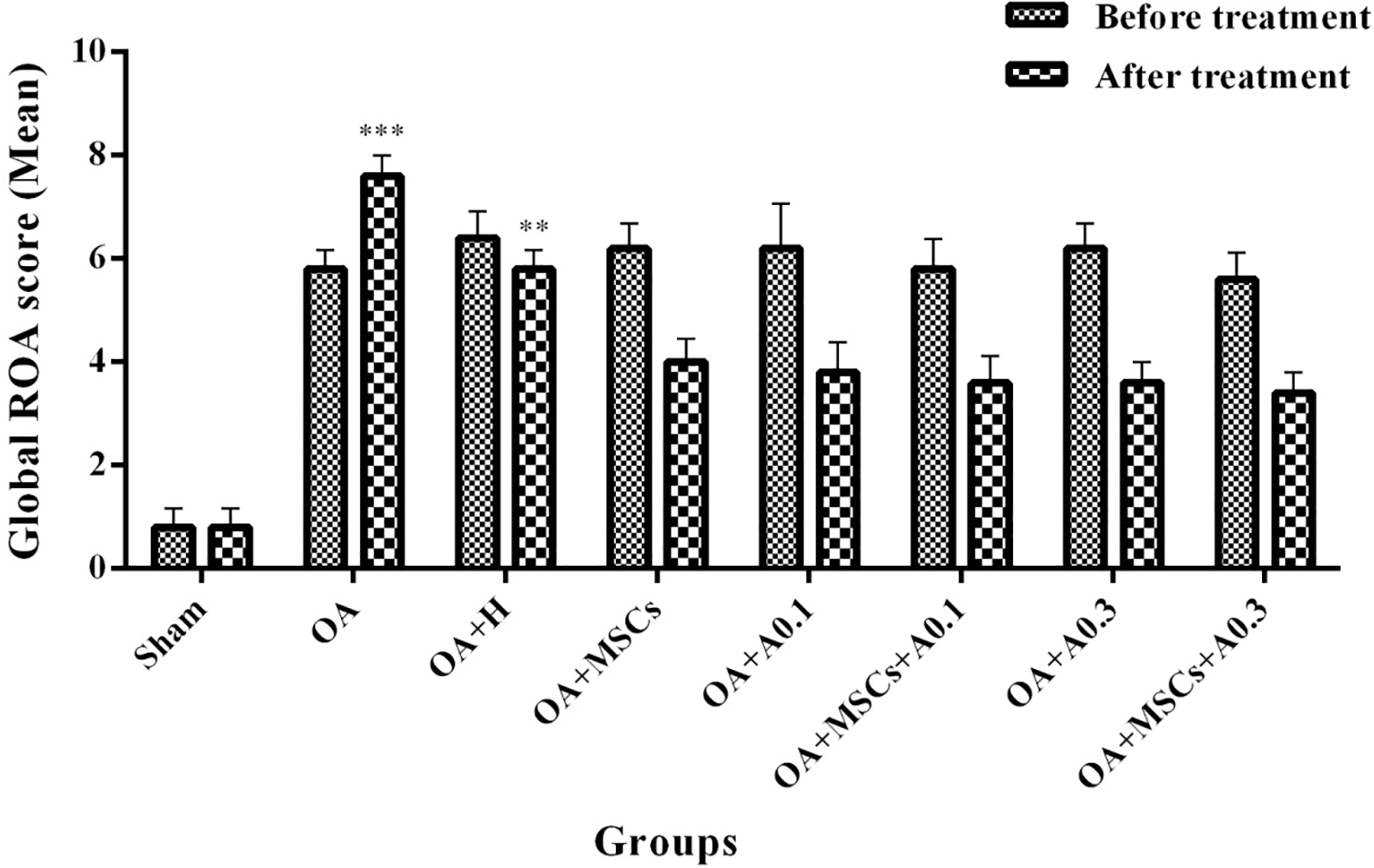

Figure 2. Global OA scores obtained from radiological assessment. Data are expressed as mean±SEM. Kruskal-Wallis with Dunn’s post hoc test was used to evaluate significant differences between the groups. **P<0.01; ***P<0.001; H: Hyaluronic acid; MSCs: Mesenchymal stem cells; A: Apigenin

Figure 3. Radiographical assessment of the knee joint in the studied groups post-treatment. (H stands for Hyaluronic acid, MSCs for Mesenchymal Stem Cells and A for Apigenin.) A) Sham: Normal knee radiography, B) OA: Absent joint space width with severe femoral and tibial condyle osteophytes, C) OA+H: Reduced joint space width with severe femoral and tibial condyle osteophytes, D) OA+MSCs: Reduced joint space width with moderate femoral and tibial condyle osteophytes, E) OA+A0.1: Reduced joint space width with small femoral osteophyte, F) OA+MSCs+A0.1: Reduced joint space width with small femoral osteophyte, G) OA+A0.3: Reduced joint space width with small femoral osteophyte, H) OA+MSCs+A0.3: Normal joint space width with small femoral osteophyte

The highest levels of TNF-α and IL-1β were observed in the OA group, and the lowest in the OA+MSCs+A0.3 group (P<0.001 and P<0.001, respectively). The level of TNF-α in all apigenin and apigenin+MSCs groups was less than in the OA+H and OA+MSCs groups, and its level decreased with each increase in apigenin concentration (figures 4A and 4B). On the other hand, the lowest anti-oxidative activity of SOD was observed in the OA group. Injection of stem cells with apigenin at a concentration of 0.3 µM led to the highest increase in the level of anti-oxidative activity of SOD ( figure 4C).

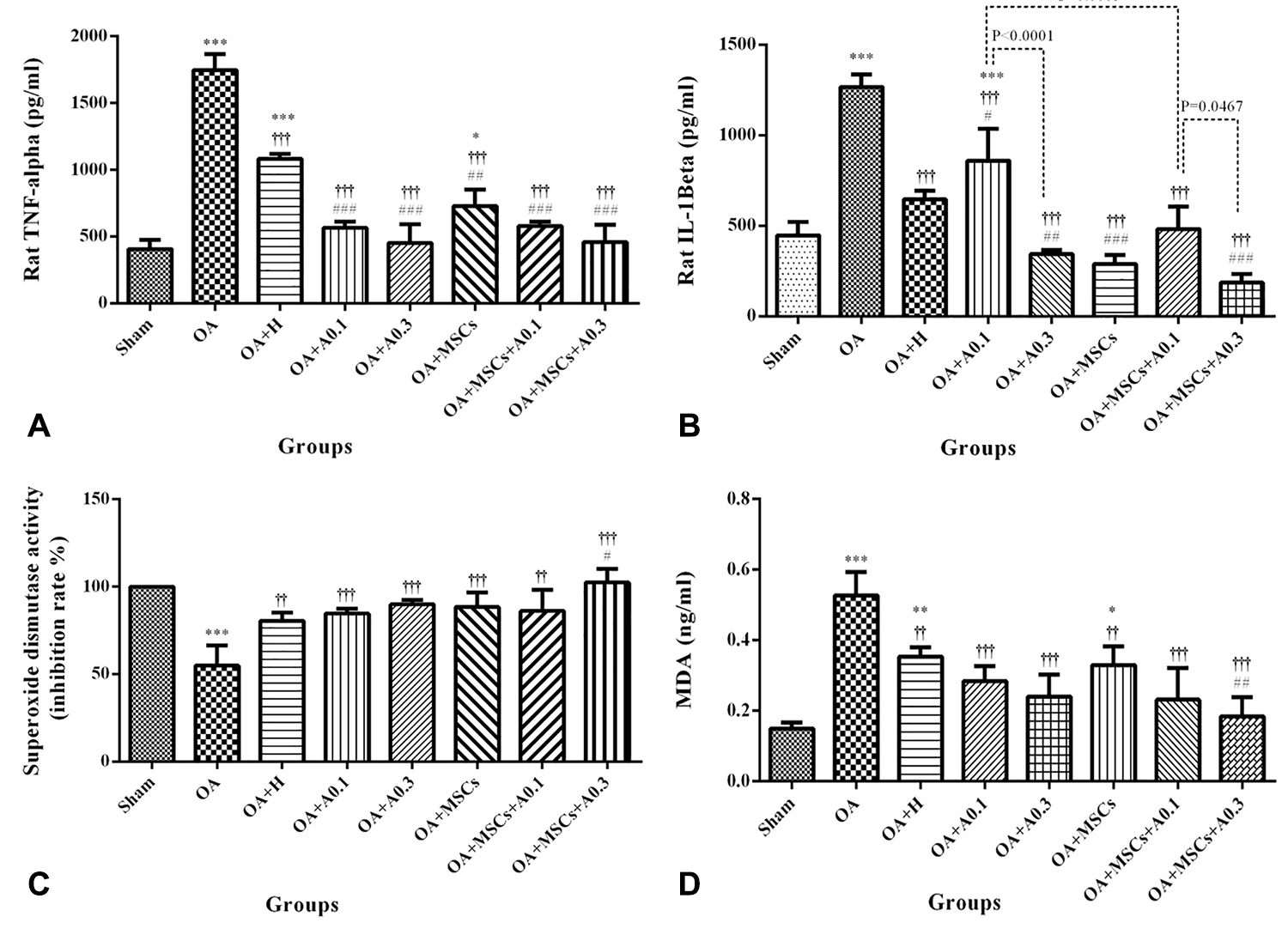

Figure 4. The measured levels of TNF-α (A), IL-1β (B), SOD (C), and MDA (D) in cartilage tissue are illustrated. One-way analysis of variance (ANOVA) followed by the Tukey post hoc test was used to evaluate significant differences between groups. Significant differences from the Sham group: *P<0.05, **P<0.01, ***P<0.001; Significant differences from the OA group:†† P<0.01, †††P<0.001; Significant differences from the H group: #P<0.05, ##P<0.01, ###P<0.001; H: Hyaluronic acid, MSCs: Mesenchymal stem cells, A: Apigenin

MDA level, as a biomarker of lipid peroxidation, was highest in the OA group ( figure 4D). A significant decrease in MDA level was observed in the OA+MSCs, OA+MSCs+A0.1 (P=0.022), and OA+MSCs+A0.3 (P=0.009) groups. The results also showed that co-injection of apigenin (0.1 and 0.3 µM) and SMMSCs reduced MDA level to levels lower than of the OA group.

Relative expressions of IL-1β, TNF-α, iNOS, MMP-3, MMP-13, collagen 2a1, aggrecan, and SOX-9 genes are shown in figure 5. The expression level of TNF-α, MMP-3, MMP-13, IL-1β, and iNOS genes was highest in the OA group than all other groups. The expression level of these genes, known for their role in inflammatory signaling pathways, was significantly reduced in the OA+MSCs, apigenin, and OA+MSCs+apigenin groups (P<0.001). Importantly, it was observed that apigenin at a concentration of 0.3 µM reduced the levels of these genes more significantly than in the OA+MSCs group. On the other hand, the expression levels of SOX-9, collagen 2a1, and aggrecan were lowest in the OA group, whereas they increased after treatment with either apigenin or MSCs, and with apigenin and SMMSCs. Interestingly, at 0.3 µM, apigenin acted as a strong inducer of the expression of these genes.

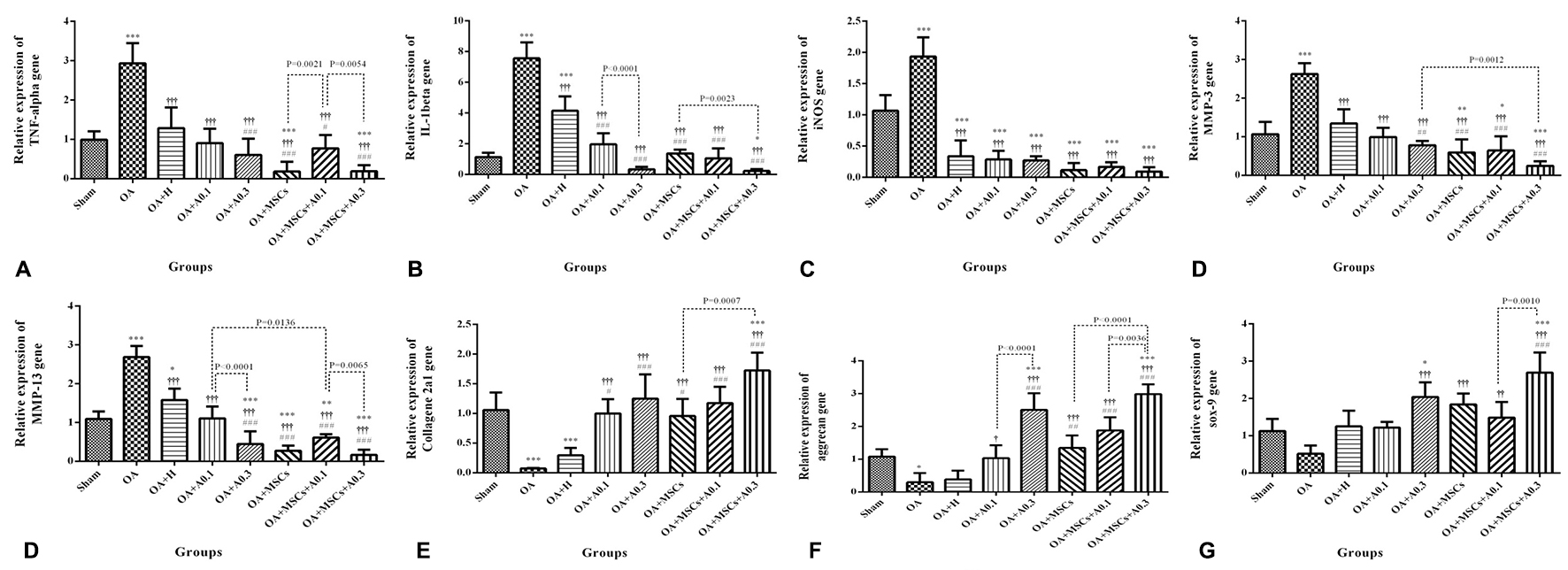

Figure 5. The figure shows the relative expression of TNF-α (A), IL-1β (B), iNOS (C), MMP-3 (D), MMP-13 (E), collagen 2a1 (F), aggrecan (G), and SOX-9 (H) genes. One-way analysis of variance (ANOVA) followed by the Tukey post hoc test was used to evaluate significant differences between the groups. Significant differences from the Sham group: *P<0.05, **P<0.01, ***P<0.001; Significant differences from the OA group: †P<0.05, ††P<0.01, †††P<0.001; Significant differences from the H group: #P<0.05, ##P<0.01, ###P<0.001; H: Hyaluronic acid; MSCs: Mesenchymal stem cells; A: Apigenin

The results of the histopathological evaluation of different groups including surface, matrix, cell distribution, cell population viability, subchondral bone, and cartilage mineralization are depicted in table 2. Histopathologic scoring for all parameters was closer to the sham group in the cell-treated and MSCs+apigenin treated groups. The result of safranin staining is presented in figure 6. Histopathological assessment (H&E) and safranin staining indicated that the OA+MSCs+A0.3 group showed a better result and a near normal articular cartilage (figures 7 and 8).

Group OA Sham OA+H OA+MSCs OA+A0.1 OA+MSCs+ A0.1 OA+A0.3 OA+MSCs+ A0.3
Mean± SEM Mean± SEM P Mean± SEM P Mean± SEM P Mean± SEM P Mean± SEM P Mean± SEM P Mean± SEM P
Surface 1.00± 0.63 3.00± 0.00 0.0040 2.00± 1.00 0.1470 3.00± 0.00 0.0040 2.25± 0.75 0.0470 3.00± 0.00 0.0040 3.00± 0.00 0.0020 3.00± 0.00 0.0020
Matrix 1.00± 0.26 3.00 ± 0.00 0.0010 2.00± 0.00 0.3940 2.67± 0.33 0.0110 2.25± 0.48 0.0400 2.67± 0.33 0.0110 2.50± 0.29 0.0200 3.00± 0.00 <0.001
Cell distribution 1.33± 0.21 3.00± 0.00 0.0010 1.67± 0.33 0.6940 2.67± 0.33 0.0160 1.75± 0.25 0.5900 3.00± 0.00 0.0010 2.25± 0.25 0.1270 3.00± 0.00 <0.001
Cell population viability 1.00± 0.45 3.00± 0.00 0.0020 2.33± 0.33 0.2560 3.00± 0.00 0.0020 2.50± 0.50 0.0160 3.00± 0.00 0.0010 2.50± 0.50 0.0160 3.00± 0.00 <0.001
Subchondral bone 1.17± 0.31 2.67± 0.33 0.0120 2.00± 0.58 0.2010 2.67± 0.33 0.0120 2.25± 0.25 0.1000 2.67± 0.33 0.0120 2.25 ± 0.25 0.1000 2.75± 0.25 <0.001
Cartilage mineralization (calcified cartilage) 0.50± 0.50 3.00± 0.00 0.0010 3.00± 0.00 0.0010 3.00± 0.00 0.0010 1.50± 0.87 0.1600 3.00± 0.00 0.0010 2.25± 0.75 0.0140 3.00± 0.00 <0.001
Data are expressed as mean±SEM. The scores were analyzed using Kruskal-Wallis analysis. Significant differences from the OA group; H: Hyaluronic acid; MSCs: Mesenchymal stem cells, A: Apigenin
Table 2.Histopathological classification of the severity of the osteoarthritis lesion according to the modified International Cartilage Research Society (ICRS) visual histological assessment scale

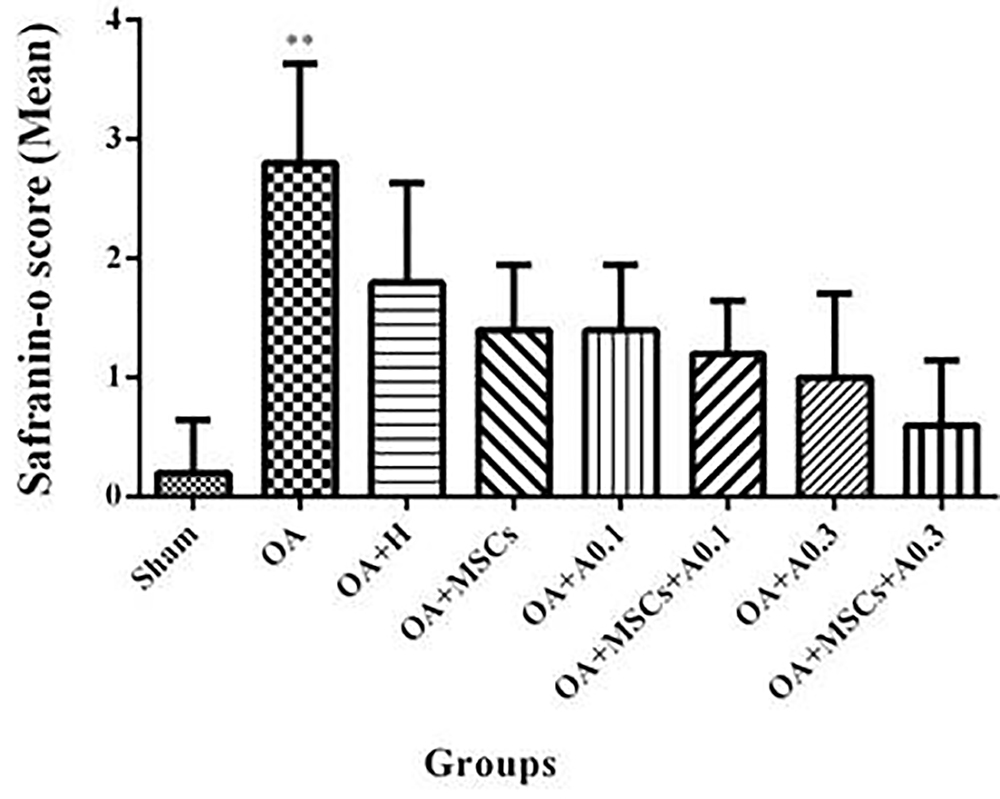

Figure 6. Safranin-O score was measured on the cartilage in the different groups. Data are expressed as mean ±SEM. Kruskal-Wallis test with Dunn’s post hoc test was used to evaluate significant differences. Significant differences from the Sham group: **P<0.01; H: Hyaluronic acid; MSCs: Mesenchymal stem cells; A: Apigenin

Figure 7. H&E staining was used for histopathological assessment (×200). A: Normal articular cartilage; B: Only fibrocartilaginous tissue with disorganized cell distribution; C: Fibrocartilaginous tissue with irregular surface; D-H: The thickness of hyaline cartilage and cell distribution in the articular surface gradually increased from group D to group G; H: Hyaluronic acid; MSCs: Mesenchymal stem cells; A: Apigenin

Figure 8. Safranin staining (×200) was used for histopathological evaluation.A) Normal articular cartilage with uniform safranin staining; B) Loss of safranin staining due to mainly fibrocartilage tissue; C) Reduced articular surface with decreased Safranin staining; D-H) The healing of hyaline articular surface gradually improved from group D to group G as shown by safranin staining; H: Hyaluronic acid; MSCs: Mesenchymal stem cells; A: Apigenin.


The co-injection of apigenin and SMMSCs had a positive effect on rats with knee OA. After injecting this compound into the knee joint of rats, a significant decrease in the MDA, IL-1β, and TNF-α levels in the gene or its product, and an increase in SOD and aggrecan levels were observed. To the best of our knowledge, this is the first study that demonstrated the beneficial effects of combination therapy with apigenin and SMMSCs in knee OA.

Nowadays, there is a growing interest in the use of natural products in the treatment of OA. Among such products, apigenin is the main candidate due to its important biological activities. 21 In this study, we took an innovative approach to assess the effect of apigenin on OA in the knee joint of a rat model when combined with cell therapy. It is known that OA is a disease associated with synovial inflammation and increased oxidative stress markers. We hypothesized that the potential anti-oxidant and anti-inflammatory properties of apigenin could enhance the efficacy of cell therapy. Therefore, we used apigenin and SMMSCs as a combination therapy.

OA is a progressive degenerative disorder of the articular cartilage affecting the entire joint, characterized by inflammatory pathways in the synovium tissue and tendon. 22 In normal conditions, chondrocytes regulate the balance between the synthesis and degradation of ECM components. However, in a pathological state, homeostasis is not maintained, leading to increased levels of degradation pathways. 23

One of the challenges in OA therapy is the restoration of the affected articular cartilage. OA can be the result of dysfunction in a population of MSCs. 24 Abnormal changes in normal MSC populations in the joint were found to lead to reduced proliferative capacity, differentiation ability, and increased degeneration reactions. 25 A recent clinical study suggested MSCs as an effective cell-based treatment for cartilage regeneration. 26 MSCs are shown to generate new cartilage and stimulate its formation by the resident chondrocytes or other cells in the joint and inhibit joint inflammation. 27 However, there are still concerns about stem cell therapy in terms of the correct dosage, timing of intervention, and the type, mode, and delivery route of MSCs. 28 , 29

In the present study, SMMCSs were used for the treatment of OA. MSCs can be isolated from different tissues including bone marrow, synovium, periosteum, skeletal muscle, and adipose tissue. It has been reported that the origin of MSCs is an important factor affecting the quality of OA cell therapy. Important criteria of synovial-MSCs such as high chondrogenic capacity and high regenerative potential showed the prominence of this type of MSCs. 30 To compare the effect of apigenin alone and in combination with SMMCSs, the positive control group in our study was treated with hyaluronic acid (H). Intra-articular injection of H can reduce pain in comparison with conventional OA treatments such as nonsteroidal anti-inflammatory drugs (NSAID); the mechanism of which remains unclear. The potential of H to attenuate the production of inflammatory mediators and induce the proliferation of chondrocytes has been shown. 31

Our results showed that the co-injection of apigenin and SMMSCs reduced the inflammation more effectively than in other groups treated with apigenin, SMMCSs, or H. The combination therapy significantly decreased IL-1β and MDA levels and increased the SOD level. A previous study indicated that apigenin possesses strong anti-oxidant, anti-inflammatory, and anti-cancer properties as well as anti-MMP effect. 32 In line with our findings, Park and colleagues showed that apigenin acts as a chondroprotective agent in vivo when administered intra-articularly. 33 The chondroprotective activity of apigenin is possibly mediated through its inhibitory effect on the expression level of IL-1β, as an important pro-inflammatory cytokine, as well as on MMPs activity. 34 The same result was obtained in the gene expression level, where the expression level of IL-1β significantly decreased in the OA+MSCs+apigenin groups in comparison with the OA+MSCs and OA groups. The IL-1β produced by chondrocytes contributed to the pathogenesis of OA through the induction of MMPs expression and thus stimulated the progression of OA. 35 Furthermore, it has been reported that apigenin decreases the expression of IL-1β by inhibiting transcription factor NFκB. 36

The results showed that the expression level of SOX-9, collagen 2a1, and aggrecan genes in the OA+MSCs+apigenin groups was higher than that of the OA and OA+MSCs groups. SOX-9 is a transcription factor known for its important role in cellular development, especially in regulating chondrocyte development. It is also an important factor in regulating the expression of ECM genes, including collagen type II and aggrecan. 37 Furthermore, it has been shown that SOX-9 is a negative regulator of cartilage degeneration enzymes at the early stage of human OA. 37 Therefore, the positive effect of apigenin on the expression level of these genes could be due to its possible role in cartilage protection. On the other hand, chondrocytes suppress oxidants by producing antioxidant enzymes. Depletion of SOD can lead to accumulated amounts of ROS and, consequently, cell dysfunction and cell death. 38 Our results showed that the SOD level in OA rats significantly decreased whereas co-injection with apigenin and SMMSCs increased SOD.

One of the events associated with OA is lipid peroxidation. We demonstrated that apigenin combined with SMMSCs can reduce the MDA level, as a marker of lipid peroxidation. Although this has already been reported in several pathological conditions, 39 our study is the first to use the application of MDA level in OA cell therapy.

The main limitation of the study was the lack of safety examinations for the injected compound in vivo. While we checked the possible toxicity of apigenin in vitro, it is recommended that future studies assess its cytotoxic effect in vivo.


Co-treatment with apigenin and SMMCSs improved knee OA therapy outcome. Apigenin may have supplementary beneficial effects on cell therapy in a rat model of OA due to its ability to reduce oxidative stress, suppress inflammation, and promote the production of ECM components. Further research into the exact mechanism of this protective effect is recommended.


This manuscript was extracted from the thesis by Firoozeh Estakhri. The study was financially supported by Shiraz University of Medical Sciences, Shiraz, Iran (research project number 15218).

Conflict of Interest: None declared.


  1. Silverwood V, Blagojevic-Bucknall M, Jinks C, Jordan JL, Protheroe J, Jordan KP. Current evidence on risk factors for knee osteoarthritis in older adults: a systematic review and meta-analysis. Osteoarthritis Cartilage. 2015; 23:507-15. DOI | PubMed
  2. Marchev AS, Dimitrova PA, Burns AJ, Kostov RV, Dinkova-Kostova AT, Georgiev MI. Oxidative stress and chronic inflammation in osteoarthritis: can NRF2 counteract these partners in crime?. Ann N Y Acad Sci. 2017; 1401:114-35. DOI | PubMed
  3. Kalaitzoglou E, Griffin TM, Humphrey MB. Innate Immune Responses and Osteoarthritis. Curr Rheumatol Rep. 2017; 19:45. DOI | PubMed
  4. Wojdasiewicz P, Poniatowski LA, Szukiewicz D. The role of inflammatory and anti-inflammatory cytokines in the pathogenesis of osteoarthritis. Mediators Inflamm. 2014; 2014:561459. Publisher Full Text | DOI | PubMed
  5. Sokolove J, Lepus CM. Role of inflammation in the pathogenesis of osteoarthritis: latest findings and interpretations. Ther Adv Musculoskelet Dis. 2013; 5:77-94. Publisher Full Text | DOI | PubMed
  6. Satue M, Schuler C, Ginner N, Erben RG. Intra-articularly injected mesenchymal stem cells promote cartilage regeneration, but do not permanently engraft in distant organs. Sci Rep. 2019; 9:10153. Publisher Full Text | DOI | PubMed
  7. Davatchi F, Sadeghi Abdollahi B, Mohyeddin M, Nikbin B. Mesenchymal stem cell therapy for knee osteoarthritis: 5 years follow-up of three patients. Int J Rheum Dis. 2016; 19:219-25. DOI | PubMed
  8. Fox BA, Stephens MM. Glucosamine/chondroitin/primorine combination therapy for osteoarthritis. Drugs Today (Barc). 2009; 45:21-31. DOI | PubMed
  9. Poulet B, Beier F. Targeting oxidative stress to reduce osteoarthritis. Arthritis Res Ther. 2016; 18:32. Publisher Full Text | DOI | PubMed
  10. Hughes SD, Ketheesan N, Haleagrahara N. The therapeutic potential of plant flavonoids on rheumatoid arthritis. Crit Rev Food Sci Nutr. 2017; 57:3601-13. DOI | PubMed
  11. Gaballah HH, Gaber RA, Mohamed DA. Apigenin potentiates the antitumor activity of 5-FU on solid Ehrlich carcinoma: Crosstalk between apoptotic and JNK-mediated autophagic cell death platforms. Toxicol Appl Pharmacol. 2017; 316:27-35. DOI | PubMed
  12. Ginwala R, Bhavsar R, Chigbu DI, Jain P, Khan ZK. Potential Role of Flavonoids in Treating Chronic Inflammatory Diseases with a Special Focus on the Anti-Inflammatory Activity of Apigenin. Antioxidants (Basel). 2019; 8Publisher Full Text | DOI | PubMed
  13. Piskin A, Gulbahar MY, Tomak Y, Gulman B, Hokelek M, Kerimoglu S, et al. Osteoarthritis models after anterior cruciate ligament resection and medial meniscectomy in rats. A histological and immunohistochemical study. Saudi Med J. 2007; 28:1796-802. PubMed
  14. Horie M, Sekiya I, Muneta T, Ichinose S, Matsumoto K, Saito H, et al. Intra-articular Injected synovial stem cells differentiate into meniscal cells directly and promote meniscal regeneration without mobilization to distant organs in rat massive meniscal defect. Stem Cells. 2009; 27:878-87. DOI | PubMed
  15. Dominici M, Le Blanc K, Mueller I, Slaper-Cortenbach I, Marini F, Krause D, et al. Minimal criteria for defining multipotent mesenchymal stromal cells. The International Society for Cellular Therapy position statement. Cytotherapy. 2006; 8:315-7. DOI | PubMed
  16. Livak KJ, Schmittgen TD. Analysis of relative gene expression data using real-time quantitative PCR and the 2(-Delta Delta C(T)) Method. Methods. 2001; 25:402-8. DOI | PubMed
  17. Wright RW, Group M. Osteoarthritis Classification Scales: Interobserver Reliability and Arthroscopic Correlation. J Bone Joint Surg Am. 2014; 96:1145-51. Publisher Full Text | DOI | PubMed
  18. Khoubnasabjafari M, Ansarin K, Jouyban A. Critical review of malondialdehyde analysis in biological samples. Current Pharmaceutical Analysis. 2016; 12:4-17. DOI
  19. Hoemann C, Kandel R, Roberts S, Saris DB, Creemers L, Mainil-Varlet P, et al. International Cartilage Repair Society (ICRS) Recommended Guidelines for Histological Endpoints for Cartilage Repair Studies in Animal Models and Clinical Trials. Cartilage. 2011; 2:153-72. Publisher Full Text | DOI | PubMed
  20. Pritzker KP, Gay S, Jimenez SA, Ostergaard K, Pelletier JP, Revell PA, et al. Osteoarthritis cartilage histopathology: grading and staging. Osteoarthritis Cartilage. 2006; 14:13-29. DOI | PubMed
  21. Babaskina L, Litvinova T, Babaskin D, Winter E, Krylova O. Improving the Chemical Status of Peloids by Adding the Phytocomplex in the Rehabilitation of Patients with Osteoarthritis: Experimental Study. Journal of Pharmaceutical Sciences and Research. 2018; 10:1238-42.
  22. Li G, Yin J, Gao J, Cheng TS, Pavlos NJ, Zhang C, et al. Subchondral bone in osteoarthritis: insight into risk factors and microstructural changes. Arthritis Res Ther. 2013; 15:223. Publisher Full Text | DOI | PubMed
  23. Man GS, Mologhianu G. Osteoarthritis pathogenesis - a complex process that involves the entire joint. J Med Life. 2014; 7:37-41. Publisher Full Text | PubMed
  24. Barry F, Murphy M. Mesenchymal stem cells in joint disease and repair. Nat Rev Rheumatol. 2013; 9:584-94. DOI | PubMed
  25. Murphy JM, Dixon K, Beck S, Fabian D, Feldman A, Barry F. Reduced chondrogenic and adipogenic activity of mesenchymal stem cells from patients with advanced osteoarthritis. Arthritis Rheum. 2002; 46:704-13. DOI | PubMed
  26. Fu WL, Zhou CY, Yu JK. A new source of mesenchymal stem cells for articular cartilage repair: MSCs derived from mobilized peripheral blood share similar biological characteristics in vitro and chondrogenesis in vivo as MSCs from bone marrow in a rabbit model. Am J Sports Med. 2014; 42:592-601. DOI | PubMed
  27. Diekman BO, Guilak F. Stem cell-based therapies for osteoarthritis: challenges and opportunities. Curr Opin Rheumatol. 2013; 25:119-26. Publisher Full Text | DOI | PubMed
  28. Dubey NK, Mishra VK, Dubey R, Syed-Abdul S, Wang JR, Wang PD, et al. Combating Osteoarthritis through Stem Cell Therapies by Rejuvenating Cartilage: A Review. Stem Cells Int. 2018; 2018:5421019. Publisher Full Text | DOI | PubMed
  29. Wang W, Cao W. Treatment of osteoarthritis with mesenchymal stem cells. Sci China Life Sci. 2014; 57:586-95. DOI | PubMed
  30. Sakaguchi Y, Sekiya I, Yagishita K, Muneta T. Comparison of human stem cells derived from various mesenchymal tissues: superiority of synovium as a cell source. Arthritis Rheum. 2005; 52:2521-9. DOI | PubMed
  31. Bian L, Hou C, Tous E, Rai R, Mauck RL, Burdick JA. The influence of hyaluronic acid hydrogel crosslinking density and macromolecular diffusivity on human MSC chondrogenesis and hypertrophy. Biomaterials. 2013; 34:413-21. Publisher Full Text | DOI | PubMed
  32. Medina JJM, Naso LG, Pérez AL, Rizzi A, Okulik NB, Ferrer EG, et al. Apigenin oxidovanadium (IV) cation interactions. Synthesis, spectral, bovine serum albumin binding, antioxidant and anticancer studies. Journal of Photochemistry and Photobiology A: Chemistry. 2017; 344:84-100. DOI
  33. Park JS, Kim DK, Shin HD, Lee HJ, Jo HS, Jeong JH, et al. Apigenin Regulates Interleukin-1beta-Induced Production of Matrix Metalloproteinase Both in the Knee Joint of Rat and in Primary Cultured Articular Chondrocytes. Biomol Ther (Seoul). 2016; 24:163-70. Publisher Full Text | DOI | PubMed
  34. Tantowi NBCA, Lau S, Hussin P, Mohamed S. Apigenin derivatives-rich clinacanthus nutans extract mitigates articular cartilage deterioration in ovariectomized rats with monosodium iodoacetate induced osteoarthritis. Osteoarthritis and Cartilage. 2018; 26:S344. DOI
  35. Vincent TL. IL-1 in osteoarthritis: time for a critical review of the literature. F1000Res. 2019; 8Publisher Full Text | DOI | PubMed
  36. Kowalski J, Samojedny A, Paul M, Pietsz G, Wilczok T. Effect of apigenin, kaempferol and resveratrol on the expression of interleukin-1beta and tumor necrosis factor-alpha genes in J774.2 macrophages. Pharmacol Rep. 2005; 57:390-4. PubMed
  37. Zhang Q, Ji Q, Wang X, Kang L, Fu Y, Yin Y, et al. SOX9 is a regulator of ADAMTSs-induced cartilage degeneration at the early stage of human osteoarthritis. Osteoarthritis Cartilage. 2015; 23:2259-68. DOI | PubMed
  38. Lepetsos P, Papavassiliou AG. ROS/oxidative stress signaling in osteoarthritis. Biochim Biophys Acta. 2016; 1862:576-91. DOI | PubMed
  39. Raskovic A, Gigov S, Capo I, Paut Kusturica M, Milijasevic B, Kojic-Damjanov S, et al. Antioxidative and Protective Actions of Apigenin in a Paracetamol-Induced Hepatotoxicity Rat Model. Eur J Drug Metab Pharmacokinet. 2017; 42:849-56. DOI | PubMed
