Iranian Journal of Medical Sciences

Document Type : Original Article(s)

Authors

1 Medical Imaging Research Center, Shiraz University of Medical Sciences, Shiraz, Iran

2 Ongil, 79 D3, Sivaya Nagar, Reddiyur Alagapuram, Salem, India

3 Department of Instrumentation and Applied Physics, Indian Institute of Science, Bangalore, India

10.30476/ijms.2021.90665.2165

Abstract

Background: The present study aimed to evaluate the effectiveness of ultra-low-dose (ULD) chest computed tomography (CT) in comparison with the routine dose (RD) CT images in detecting lung lesions related to COVID-19.
Methods: A prospective study was conducted during April-September 2020 at Shahid Faghihi Hospital affiliated with Shiraz University of Medical Sciences, Shiraz, Iran. In total, 273 volunteers with suspected COVID-19 participated in the study and successively underwent RD-CT and ULD-CT chest scans. Two expert radiologists qualitatively evaluated the images. Dose assessment was performed by determining volume CT dose index, dose length product, and size-specific dose estimate. Data analysis was performed using a ranking test and kappa coefficient (κ). P<0.05 was considered statistically significant.

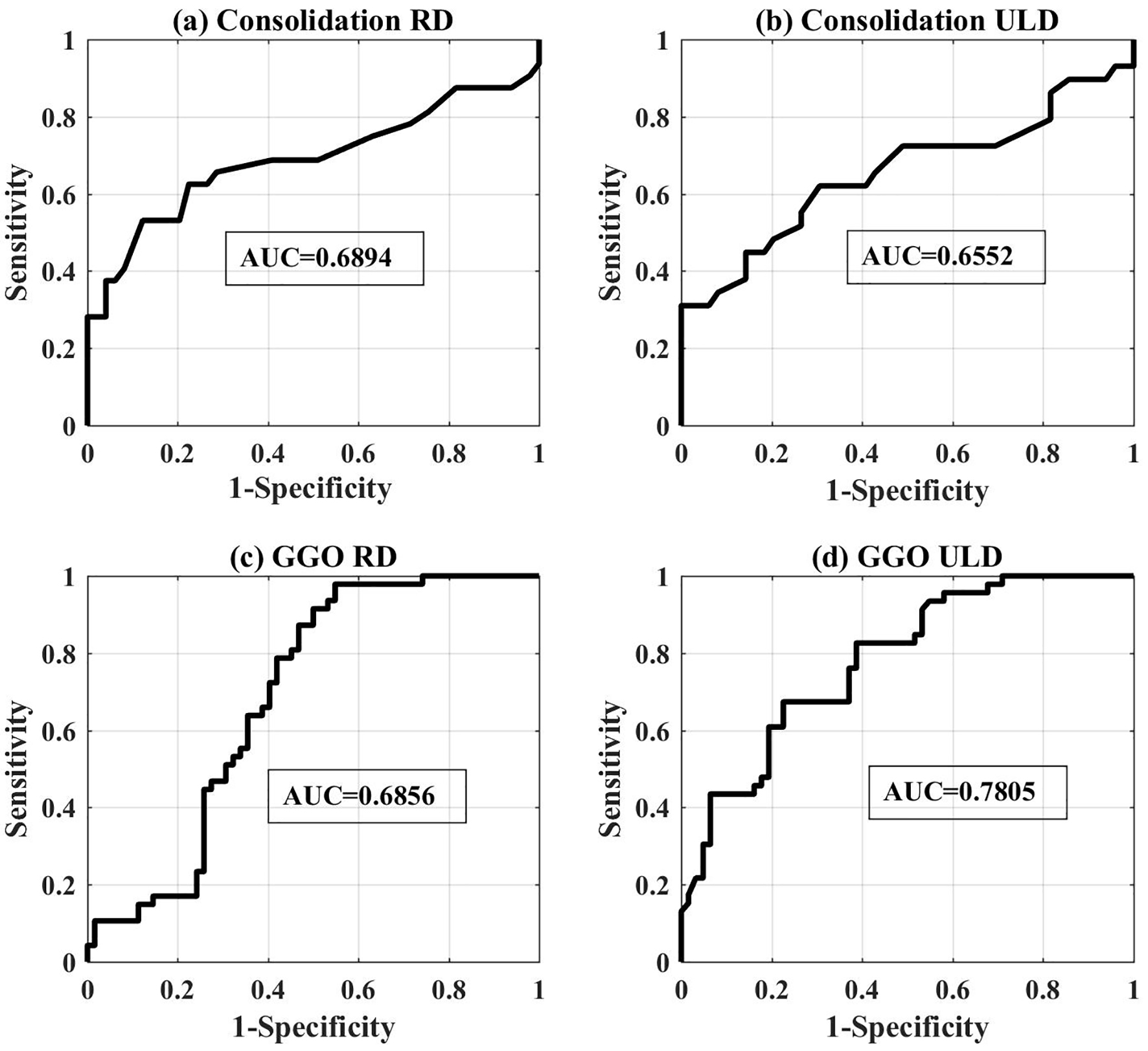

Results: Lung lesions could be detected with both RD-CT and ULD-CT images in patients with suspected or confirmed COVID-19 (κ=1.0, P=0.016). The estimated effective dose for the RD-CT protocol was 22-fold higher than in the ULD-CT protocol. In the case of the ULD-CT protocol, sensitivity, specificity, accuracy, and positive predictive value for the detection of consolidation were 60%, 83%, 80%, and 20%, respectively. Comparably, in the case of RD-CT, these percentages for the detection of ground-glass opacity (GGO) were 62%, 66%, 66%, and 18%, respectively. Assuming the result of real-time polymerase chain reaction as true-positive, analysis of the receiver-operating characteristic curve for GGO detected using the ULD-CT protocol showed a maximum area under the curve of 0.78.
Conclusion: ULD-CT, with 94% dose reduction, can be an alternative to RD-CT to detect lung lesions for COVID-19 diagnosis and follow-up.

Keywords

  1. Organization WH [Internet]. WHO Coronavirus (COVID-19) Dashboard. WHO Coronavirus (COVID-19) Dashboard With Vaccination Data. [cited 26 Sep 2021]. Available from: https://covid19.who.int/
  2. Fang Y, Zhang H, Xie J, Lin M, Ying L, Pang P, et al. Sensitivity of Chest CT for COVID-19: Comparison to RT-PCR. Radiology. 2020;296:E115-E7. doi: 10.1148/radiol.2020200432. PubMed PMID: 32073353; PubMed Central PMCID: PMCPMC7233365.
  3. Ai T, Yang Z, Hou H, Zhan C, Chen C, Lv W, et al. Correlation of Chest CT and RT-PCR Testing for Coronavirus Disease 2019 (COVID-19) in China: A Report of 1014 Cases. Radiology. 2020;296:E32-E40. doi: 10.1148/radiol.2020200642. PubMed PMID: 32101510; PubMed Central PMCID: PMCPMC7233399.
  4. Smith-Bindman R, Lipson J, Marcus R, Kim KP, Mahesh M, Gould R, et al. Radiation dose associated with common computed tomography examinations and the associated lifetime attributable risk of cancer. Arch Intern Med. 2009;169:2078-86. doi: 10.1001/archinternmed.2009.427. PubMed PMID: 20008690; PubMed Central PMCID: PMCPMC4635397.
  5. Paks M, Leong P, Einsiedel P, Irving LB, Steinfort DP, Pascoe DM. Ultralow dose CT for follow-up of solid pulmonary nodules: A pilot single-center study using Bland-Altman analysis. Medicine (Baltimore). 2018;97:e12019. doi: 10.1097/MD.0000000000012019. PubMed PMID: 30142849; PubMed Central PMCID: PMCPMC6112944.
  6. Jin S, Zhang B, Zhang L, Li S, Li S, Li P. Lung nodules assessment in ultra-low-dose CT with iterative reconstruction compared to conventional dose CT. Quant Imaging Med Surg. 2018;8:480-90. doi: 10.21037/qims.2018.06.05. PubMed PMID: 30050782; PubMed Central PMCID: PMCPMC6037949.
  7. Kroft LJM, van der Velden L, Giron IH, Roelofs JJH, de Roos A, Geleijns J. Added Value of Ultra-low-dose Computed Tomography, Dose Equivalent to Chest X-Ray Radiography, for Diagnosing Chest Pathology. J Thorac Imaging. 2019;34:179-86. doi: 10.1097/RTI.0000000000000404. PubMed PMID: 30870305; PubMed Central PMCID: PMCPMC6485307.
  8. Kim Y, Kim YK, Lee BE, Lee SJ, Ryu YJ, Lee JH, et al. Ultra-Low-Dose CT of the Thorax Using Iterative Reconstruction: Evaluation of Image Quality and Radiation Dose Reduction. AJR Am J Roentgenol. 2015;204:1197-202. doi: 10.2214/AJR.14.13629. PubMed PMID: 26001228.
  9. Dangis A, Gieraerts C, De Bruecker Y, Janssen L, Valgaeren H, Obbels D, et al. Accuracy and Reproducibility of Low-Dose Submillisievert Chest CT for the Diagnosis of COVID-19. Radiol Cardiothorac Imaging. 2020;2:e200196. doi: 10.1148/ryct.2020200196. PubMed PMID: 33778576; PubMed Central PMCID: PMCPMC7233439
  10. Carotti M, Salaffi F, Sarzi-Puttini P, Agostini A, Borgheresi A, Minorati D, et al. Chest CT features of coronavirus disease 2019 (COVID-19) pneumonia: key points for radiologists. Radiol Med. 2020;125:636-46. doi: 10.1007/s11547-020-01237-4. PubMed PMID: 32500509; PubMed Central PMCID: PMCPMC7270744.
  11. Fang Y, Zhang H, Xu Y, Xie J, Pang P, Ji W. CT Manifestations of Two Cases of 2019 Novel Coronavirus (2019-nCoV) Pneumonia. Radiology. 2020;295:208-9. doi: 10.1148/radiol.2020200280. PubMed PMID: 32031481; PubMed Central PMCID: PMCPMC7233358.
  12. Xie X, Zhong Z, Zhao W, Zheng C, Wang F, Liu J. Chest CT for Typical Coronavirus Disease 2019 (COVID-19) Pneumonia: Relationship to Negative RT-PCR Testing. Radiology. 2020;296:E41-E5. doi: 10.1148/radiol.2020200343. PubMed PMID: 32049601; PubMed Central PMCID: PMCPMC7233363.
  13. Jalli R, Zarei F, Chatterjee S, Ravanfar Haghighi R, Novshadi A, Iranpour P, et al. Evaluation of Ultra-Low-Dose Chest CT Images to Detect Lung Lesions. Middle East Journal of Cancer. 2021. doi: 10.30476/MEJC.2021.87355.1410.
  14. Ludwig M, Chipon E, Cohen J, Reymond E, Medici M, Cole A, et al. Detection of pulmonary nodules: a clinical study protocol to compare ultra-low dose chest CT and standard low-dose CT using ASIR-V. BMJ Open. 2019;9:e025661. doi: 10.1136/bmjopen-2018-025661. PubMed PMID: 31420379; PubMed Central PMCID: PMCPMC6701577.
  15. Messerli M, Kluckert T, Knitel M, Walti S, Desbiolles L, Rengier F, et al. Ultralow dose CT for pulmonary nodule detection with chest x-ray equivalent dose - a prospective intra-individual comparative study. Eur Radiol. 2017;27:3290-9. doi: 10.1007/s00330-017-4739-6. PubMed PMID: 28093625.
  16. Azadbakht J, Khoramian D, Lajevardi ZS, Elikaii F, Aflatoonian AH, Farhood B, et al. A review on chest CT scanning parameters implemented in COVID-19 patients: bringing low-dose CT protocols into play. Egyptian Journal of Radiology and Nuclear Medicine. 2021;52:1-10. doi: 10.1186/s43055-020-00400-1.8.
  17. Brady SL, Kaufman RA. Investigation of American Association of Physicists in Medicine Report 204 size-specific dose estimates for pediatric CT implementation. Radiology. 2012;265:832-40. doi: 10.1148/radiol.12120131. PubMed PMID: 23093679.
  18. Mettler FA, Jr., Huda W, Yoshizumi TT, Mahesh M. Effective doses in radiology and diagnostic nuclear medicine: a catalog. Radiology. 2008;248:254-63. doi: 10.1148/radiol.2481071451. PubMed PMID: 18566177.
  19. Hefeda MM. CT chest findings in patients infected with COVID-19: review of literature. The Egyptian Journal of Radiology and Nuclear Medicine. 2020;51:239. doi: 10.1186/s43055-020-00355-3. PubMed PMID: PMC7691695.
  20. Daniel WW. Biostatistics : basic concepts and methodology for the health sciences. 9th ed. New Jersey: John Wiley & Sons; 2010.
  21. Johnson R, Miller I, Freund J. Miller & Freund’s Probability and Statistics for Engineers. 8th ed. New York: Pearson; 2011.
  22. Mohanty NC. Signal processing: signals, filtering, and detection. Van Nostrand Reinhold electrical/computer science and engineering series. New York: Springer; 1987.
  23. Frieden R. Probability, statistical optics, and data testing: a problem solving approach. New York: Springer; 2001. p. 258–60 . doi: 10.1007/978-3-642-56699-8.
  24. Helstrom CW. Statistical Theory of Signal Detection. 2nd Ed. New York: Springer; 1960.
  25. Kalender WA. Computed tomography: fundamentals, system technology, image quality, applications. Erlangen: Wiley-VCH; 2005. 372 p.
  26. Seeram E. Computed Tomography-E-Book: Physical Principles, Clinical Applications, and Quality Control. 2nd ed. Newberg: Saunders Company; 2001. 560 p.
  27. Saha GB. Structure of Matter. In: Saha GB, editor. Physics and Radiobiology of Nuclear Medicine. New York: Springer; 2013. p. 1-10.
  28. Wang D, Hu B, Hu C, Zhu F, Liu X, Zhang J, et al. Clinical Characteristics of 138 Hospitalized Patients With 2019 Novel Coronavirus-Infected Pneumonia in Wuhan, China. JAMA. 2020;323:1061-9. doi: 10.1001/jama.2020.1585. PubMed PMID: 32031570; PubMed Central PMCID: PMCPMC7042881.
  29. Ye Z, Zhang Y, Wang Y, Huang Z, Song B. Chest CT manifestations of new coronavirus disease 2019 (COVID-19): a pictorial review. Eur Radiol. 2020;30:4381-9. doi: 10.1007/s00330-020-06801-0. PubMed PMID: 32193638; PubMed Central PMCID: PMCPMC7088323.
  30. Liu M, Zeng W, Wen Y, Zheng Y, Lv F, Xiao K. COVID-19 pneumonia: CT findings of 122 patients and differentiation from influenza pneumonia. Eur Radiol. 2020;30:5463-9. doi: 10.1007/s00330-020-06928-0. PubMed PMID: 32399710; PubMed Central PMCID: PMCPMC7216854.
  31. Dorneles CM, Pacini GS, Zanon M, Altmayer S, Watte G, Barros MC, et al. Ultra-low-dose chest computed tomography without anesthesia in the assessment of pediatric pulmonary diseases. J Pediatr (Rio J). 2020;96:92-9. doi: 10.1016/j.jped.2018.07.010. PubMed PMID: 30236593.
  32. Khan AN, Khosa F, Shuaib W, Nasir K, Blankstein R, Clouse M. Effect of Tube Voltage (100 vs. 120 kVp) on Radiation Dose and Image Quality using Prospective Gating 320 Row Multi-detector Computed Tomography Angiography. J Clin Imaging Sci. 2013;3:62. doi: 10.4103/2156-7514.124092. PubMed PMID: 24605257; PubMed Central PMCID: PMCPMC3935263.
  33. Seyal AR, Arslanoglu A, Abboud SF, Sahin A, Horowitz JM, Yaghmai V. CT of the Abdomen with Reduced Tube Voltage in Adults: A Practical Approach. Radiographics. 2015;35:1922-39. doi: 10.1148/rg.2015150048. PubMed PMID: 26473536.
  34. Haghighi RR, Chatterjee S, Vyas A, Kumar P, Thulkar S. X-ray attenuation coefficient of mixtures: inputs for dual-energy CT. Med Phys. 2011;38:5270-9. doi: 10.1118/1.3626572. PubMed PMID: 21992344.
  35. Haghighi RR, Chatterjee S, Tabin M, Sharma S, Jagia P, Ray R, et al. DECT evaluation of noncalcified coronary artery plaque. Med Phys. 2015;42:5945-54. doi: 10.1118/1.4929935. PubMed PMID: 26429269.
  36. Park SB, Kim YS, Lee JB, Park HJ. Knowledge-based iterative model reconstruction (IMR) algorithm in ultralow-dose CT for evaluation of urolithiasis: evaluation of radiation dose reduction, image quality, and diagnostic performance. Abdom Imaging. 2015;40:3137-46. doi: 10.1007/s00261-015-0504-y. PubMed PMID: 26197735.
  37. Wang Q, Geng H, Bai H, Wang R, Dong G. Clinical Application of Iterative Reconstruction Technology in Ultra Low Dose Chest CT. Journal of Medical Imaging and Health Informatics. 2015;5:1599-602. doi: 10.1166/jmihi.2015.1617.
  38. Nagayama Y, Tanoue S, Tsuji A, Urata J, Furusawa M, Oda S, et al. Application of 80-kVp scan and raw data-based iterative reconstruction for reduced iodine load abdominal-pelvic CT in patients at risk of contrast-induced nephropathy referred for oncological assessment: effects on radiation dose, image quality and renal function. Br J Radiol. 2018;91:20170632. doi: 10.1259/bjr.20170632. PubMed PMID: 29470108; PubMed Central PMCID: PMCPMC6190770.
