What’s Known

MicroRNAs (miRNAs) are small non-coding RNAs that have pivotal effects in biological processes. Identifying the specific expression patterns of miRNAs in various diseases, including autoimmune diseases, reveals their regulatory role. This suggests that miRNAs could serve as both biomarkers and potential therapeutic strategies for treating autoimmune diseases.

What’s New

In the present study, we examined the effect of two hub miRNAs, miR-449a and miR-520d-3p, identified from the microarray network. Our analysis of the predicted target genes—TUBA1C, S100A6, and LASP1— revealed that the expression of all three target genes is affected by these miRNAs.

Introduction

Neurological ailments are becoming more prevalent in society and are the subject of intense research. Multiple sclerosis (MS) remains a public health problem and a therapeutic challenge. MS is a complex disease where the immune system infiltrates the central nervous system (CNS), attacking and degrading the myelin sheath. This leads to axonal injury and neurological dysfunction within the CNS. ¹ The most prevalent phenotype and the predominant form of the disease, accounting for 85% of MS cases, is relapsing-remitting MS (RRMS). Furthermore, 75% of individuals affected by this condition progress to a more advanced stage characterized by neuronal degeneration, known as secondary progressive MS (SPMS). ² It is now well-recognized that MS is a complicated multifactorial illness influenced by both hereditary and environmental factors that affect the immune reactions responsible for myelin destruction. ³ One such factor is altered microRNA (miRNA) expression, which has been functionally linked to the pathogenesis of MS. ⁴

The CNS is the site of expression for over 60% of the human miRNAs discovered to date. ⁵ Changes in miRNA expression in the nervous system can result in neurological illnesses such as MS because miRNAs play significant roles in neurogenesis and glial cell function by influencing gene expression at the post-transcriptional level. Further, because they are abundantly expressed in immune cells, miRNAs are expected to have a significant impact on MS. ⁶ Numerous studies have shown the relationship between changes in miRNA expression and the recurrence and recovery of MS. The mode of miRNA regulation varies depending on the type of miRNA and the tissue in which it is expressed. Of note, several miRNAs have been demonstrated to interact with the Notch1 signaling pathway. ^{3 , 7 , 8}

Here, we aimed to examine interactions between miRNAs in the context of MS to identify those that are particularly important in the disease.

Patients and Methods

Patients’ miRNA Sampling and Ethics Statement

This study investigates the expression levels of two miRNAs, hsa-miR-520d-3p and hsa-miR-449a, in the blood of MS patients, exhibiting significant differences compared to healthy controls. The analysis encompasses patients at various disease stages, including RRMS and SPMS. Considering various factors such as the psychological challenges faced by patients, budget constraints, time limitations, availability of skilled personnel and necessary facilities, whole blood samples were collected from the MS Research Center and Al-Zahra Hospital in Isfahan, Iran, between June 2019 and October 2019. RNA extraction was subsequently conducted in the laboratory at Isfahan University.

Before sampling, patients’ written informed consent was collected for this study along with a data gathering form comprising details about their name, surname, age, blood type, length of sickness, stage of disease, and other features. With the permission ID: IR.UI.REC.1399.076, it is certified that all techniques were carried out in compliance with the pertinent rules and regulations as well as the ethical principles, national norms, and standards.

All experimental procedures were approved by the Ethics Committee of the University of Isfahan, and informed consent was obtained from all participants before the study.

Sequencing Data

The GSE21079 dataset was retrieved from the Gene Expression Omnibus (GEO) database. The miRNAs with the largest variance were retrieved and utilized as an input to train the miRNA regulatory Bayesian network (BN) using bnlearn, an R add-on package (version: 4.7.1;) to remove noise from the data and identify differentially expressed miRNAs (DEMs). The highest variance miRNAs were filtered using the following codes: qt=quantile(t(data1); probes=c(0.0002,0.99)); rows1=apply(t(data1), function(x), any(xqt|x>qt)); data2=t(data1)[, rows1].

Network Construction

A miRNA-miRNA interaction network was created using a BN implemented in the add-on R package bnlearn. The Cytoscape-based aMatReader plugin (version 3.8.2) (https://apps.cytoscape.org/apps/amatreader) was then used to study the adjacency matrix that resulted from the learned network in the R environment. Different Cytoscape software plugins, including NetworkAnalyzer (https://apps.cytoscape.org/apps/networkanalyzer) and CytoHubba (https://apps.cytoscape.org/apps/cytohubba), were used to identify topological characteristics and conduct analysis. A thorough set of topological parameters was gathered using the NetworkAnalyzer plugin. Network hubs were located using CytoHubba.

Extracting the mRNAs-miRNAs Network

According to our assessments of the literature, LIM, SH3 protein 1 (LASP1), S100 calcium binding protein A6 (S100A6), and TUBA1C genes have a role in MS. ⁹ Therefore, the prediction tools miRmap (https://mirmap.ezlab.org/), miRWalk (http://mirwalk.umm.uni-heidelberg.de/), miRDB (http://mirdb.org/), and TargetScan (http://www.targetscan.org/vert_72/) were used to find miRNAs potentially targeting LASP1, S100A6, and TUBA1C genes. We looked at the many miRNA sets that influence these three genes (figure 1). From the network of a group of miRNAs impacting each of the three discovered genes (LASP1, S100A6, and TUBA1C), two miRNA hubs, miRNA-449a and miR-520d-3p, were found. The existence and function of these hubs were examined. RNAhybrid (https://bibiserv.cebitec.uni-bielefeld.de/rnahybrid/) was used to determine miRNA–mRNA interactions of our postulated key MS genes. RNAhybrid calculates the minimum free energy hybridization of a long and a short RNA. This program has been used to easily, rapidly, and flexibly predict miRNA targets and can be used to predict miRNA/mRNA hybridization based on a single genome and secondary structure analysis using MFE (minimum free energies).

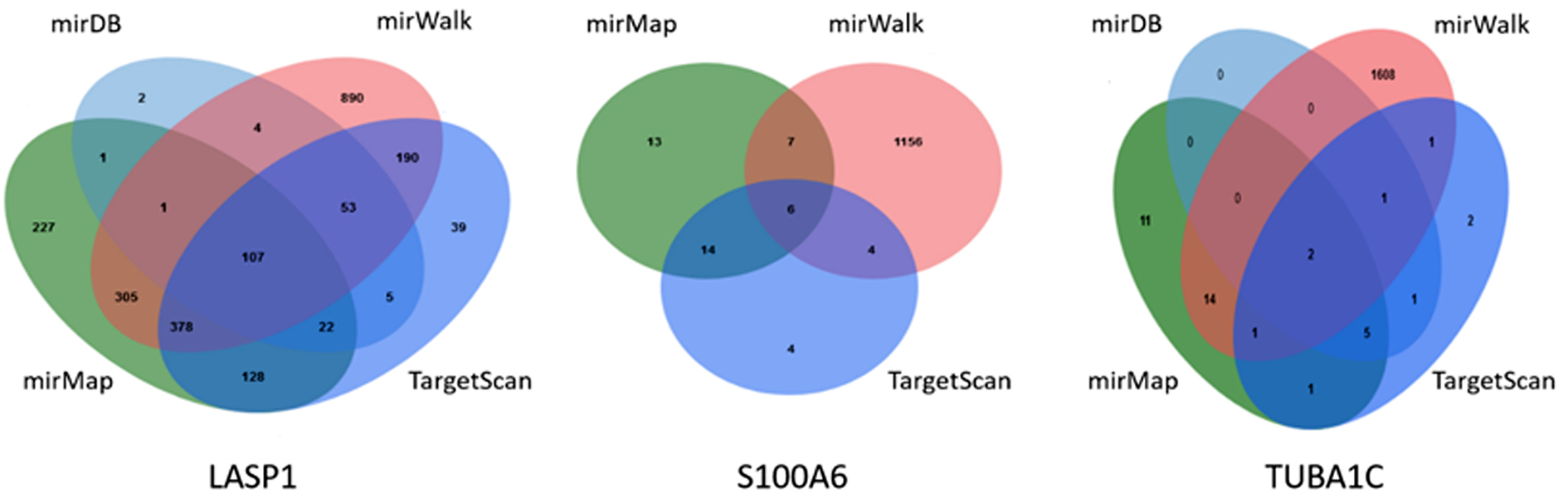

Figure 1. Venn diagram showing the overlap of predicted miRNA targets for the three genes LASP1, S100A6, and TUBA1C. Databases compared were miRmap, miRDB, miRWalk and Target Scan for the two genes of LASP1, TUBA1C, and databases miRmap, miRWalk, and Target Scan for the S100A6 gene. The web tool (https://goodcalculators.com/venn-diagram-maker/) was used to construct the Venn diagram.

In silico Functional Analysis of miRNA Target Genes

The projected target genes of hsa-mir-449a and hsa-mir-5203p were identified using TargetScan (https://www.targetscan.org/vert_80/). Panther protein database and Ingenuity Pathway Analysis (IPA) software (QIAGEN Inc., Redwood City, CA; https://digitalinsights.qiagen.com/products-overview/discovery-insights-portfolio/analysis-and-visualization/qiagen-ipa/) were used to investigate the functions of the top 100 predicted target genes for each miRNA.

RNA Extraction

TRIzol solution (Bio BASIC, Canada) was used for total RNA extraction in accordance with the manufacturer’s instructions. The amount needed for cDNA synthesis was calculated using a Thermo Scientific Tm Nanodrop One C (One C model, Thermo Fisher Scientific, United States) spectrophotometer by evaluating the purity and concentration of the RNA. In RNA samples, the 260:280 nm absorption ratio varied from 1.7 to 2.0, indicating good quality. RNAs were kept at -70 °C until cDNA synthesis. Genomic DNA was eliminated using Dnase I (Fermentase Cat # ENO 521, Thermo Fisher Scientific, United States) treatment after extraction and before cDNA synthesis.

Real Time Quantitative PCR (RT-qPCR)

The cDNAs synthesized in the previous step were subjected to QRT-PCR using the BON-miR High-Specificity miRNA QPCR Core Reagent Kit (Stem Cell Technology Research Center in Iran [info@bonbiotech.ir]) with specific forward primers for each miRNA. The C/D box snoRNAs (SNORD) gene, which has previously been tested as a suitable transcript (https://bonbiotech.ir), was used as an internal control. The reverse universal primer contained in the BON-miR QPCR kit binds to the sequence added to the miRNAs during cDNA synthesis by the BON-miR RT primer. The specificity of the Real-time quantitative PCR (qPCR) reaction is determined by the forward primer (table 1). All steps of preparing the samples for the Real-time reaction (Chrimo4-Bio Rad Supports Opticon Monitor™ version 3.1, Germany) were performed as far away from the light as possible. The reaction steps were carried out in duplicate in the thermocycler (Bio-Rad-USA) using the program: 95 °C, 2 min, 1 cycle; 95 °C, 5 seconds, 40 cycles; 60 °C, 30 seconds.

Results

Network Construction

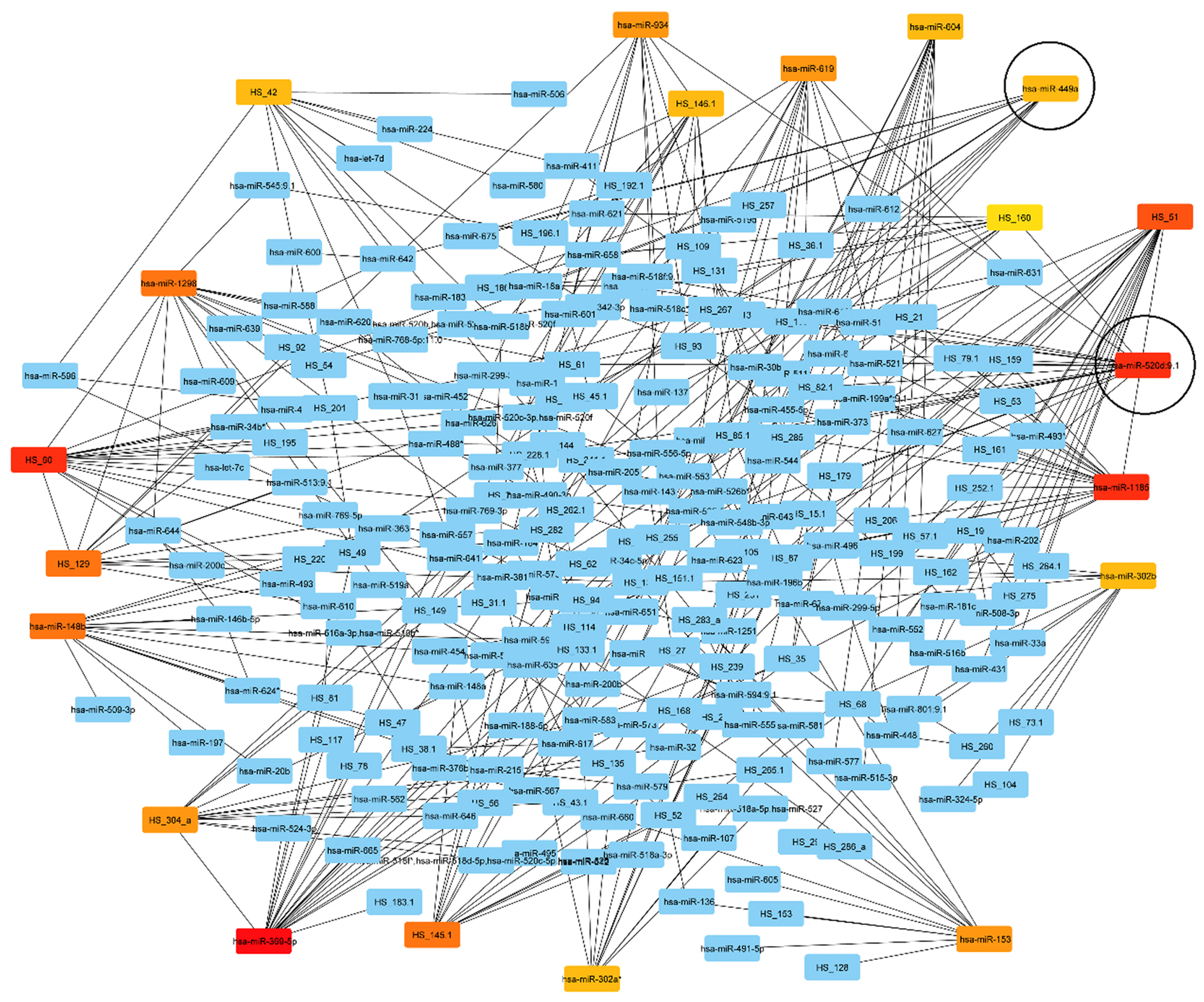

To identify miRNAs with a role in MS pathogenesis, we made use of a published dataset consisting of miRNA microarray expression profiling in peripheral blood of 59 MS patients categorized into three stages: SPMS with 17 participants, primary progressive MS (PPMS) with 18 participants, and RRMS with 24 participants and 37 healthy controls to learn a BN describing miRNA-miRNA interactions. The learned BN consisted of 732 nodes (genes) and 1,998 edges (interactions) (figures 2A-B). The biological and topological parameters of the network are shown in table 2 and figure 2. In this network, the clustering coefficient was 0.005 and the shortest path amplitude obtained between nodes was between 4 and 7 (figures 2C-D). The clustering coefficient, which is related to the local integrity of the network and calculates the probability of two nodes connecting to a common neighbor, quantifies the richness of connected tri-angles in a learned network and is considered to characterize the internal network structure. The closer the clustering coefficient is to 1, the greater the probability of cluster formation in the network. The betweenness parameter measures the number of shortest paths passing through a node in the network. However, it is often difficult to determine how the clustering coefficient should be interpreted in a directed network (BN) biologically.

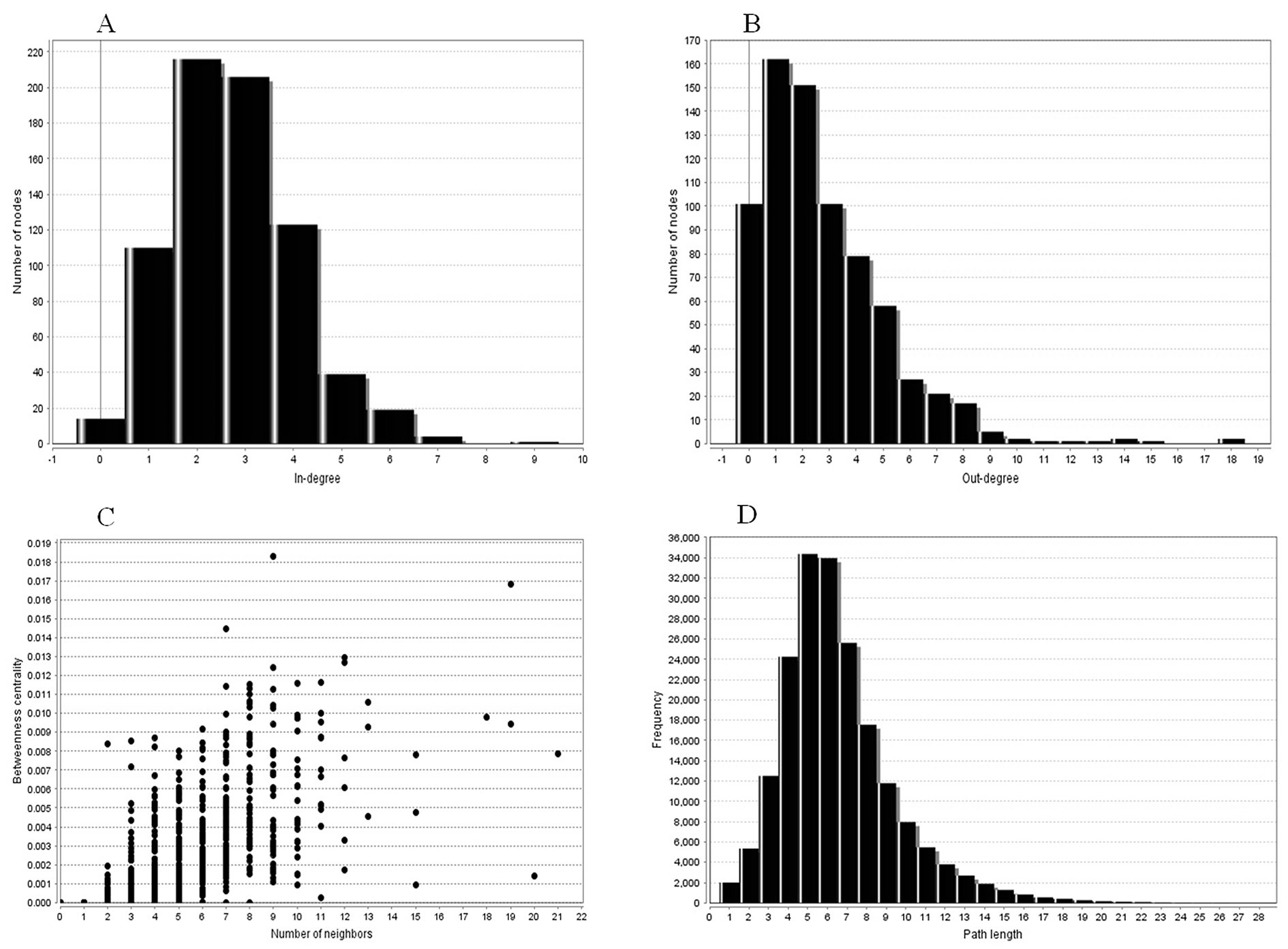

Figure 2. The topological measures of the Bayesian network for miRNA expression in MS. A and B: Node degree distribution (number of input and output nodes). C: Distribution of common neighbors. D: Path length.

Identification of miR-449a and miR-520d-3p as Hubs in the Network

CytoHubba was used to identify several hub miRNAs, of which two (hsa-miR-520d-3p and hsa-miR-449a) had the greatest connectedness to other hub miRNAs (figure 3). We focused on three target protein-coding genes, LASP1, TUBA1C, and S100A6, which have been suggested in the literature to have roles in MS pathogenesis. Mature miRNA sequences for miR-449a and miR-520d-3p were obtained from miRbase (www.mirbase.org), and 3′ UTR sequences for the three target genes from the NCBI gene database. Interactions were examined using the RNAhybrid program, and the most ideal hybridization point between the two sequences was identified based on the projected interaction between the miRNAs (miR-449a and miR-520d-3p) and several versions of the target gene sequences (LASP1, TUBA1C, and S100A6). The P value was determined based on the rigid distribution of the normal energy value and the assumption that the target hybridizes and inhibits the pairing of intramolecular bases and branching structures.

Figure 3. CytoHubba results show 20 hub miRNAs as high and low degrees.

The results suggest the TUBA1C gene as a significant miRNA target in MS, based on its predicted interaction with the two miRNAs (miR-449a and miR-520d-3p) and the minimum free energy hybridization. ¹⁰ The interaction between miR-449a and miR-520d-3p with LASP1 and S100A6 shows minimal free energy of hybridization.

Other miRNA Target Genes

To look for more general functions of the hub miRNAs beyond the three main target genes, we examined the top 100 predicted target genes of hsa-mir-449a and hsa-mir-5203pin silico to look for related functions. In particular, target genes of hsa-mir-449a were enriched for various neurological signaling mechanisms, including the opioid proenkephalin and opioid proopiomelanocortin signaling pathways, dopamine receptor signaling, the 5HT1/2/3/4 signaling pathways, the opioid proenkephalin pathway, the opioid proopiomelanocortin pathway, the pathway for inflammation mediated by chemokine and cytokine signaling, and the transforming growth factor beta (TGFB) signaling pathway. Neurotransmission and neuronal cell differentiation were highlighted as enriched by Ingenuity Pathway Analysis. Together, these enriched functions suggest multiple mechanisms by which hsa-mir-449a may contribute to MS pathology.

miRNA Expression

A previous work has quantified differences in the expression of SNORD reference gene, hsa-miR-520d-3p, and hsa-miR-449a by RT-qPCR in samples from MS patients compared to healthy controls. ¹¹ Table 3 and figure 4 show the outcomes after analysis with REST2009 software (http://rest.gene-quantification.info/). When MS patients were compared to controls, there was a statistically significant difference between the miRNA expression levels in MS patients and healthy individuals: 0.324 for hsa-miR-520d-3p and 0.075 for hsa-miR-449a, reflecting 3.1-fold and 13.3-fold downregulation, respectively.

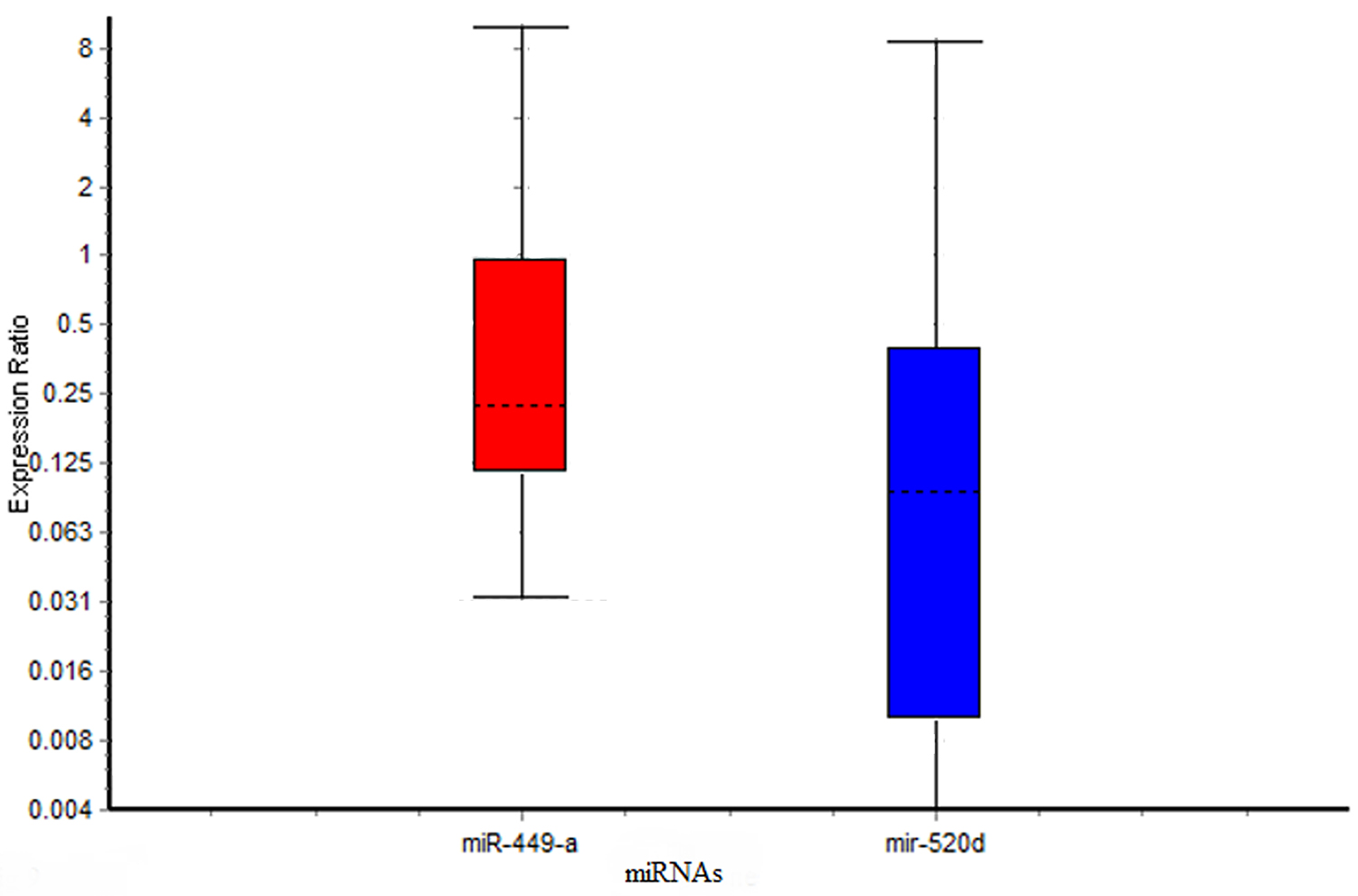

Figure 4. Boxes represent the interquartile range or the middle 50% of observations. The dotted line represents the median gene expression. Whiskers represent the minimum and maximum observations.

Discussion

The objective of identifying biomarkers for MS is to facilitate early intervention, tailor patient care, and reduce the costs associated with clinical trials. However, the inherent variability of the disease necessitates the establishment of clearly defined patient populations, dependable assessment platforms, and validation across multiple centers. A combinatorial strategy is essential for developing thorough diagnostic and treatment response profiles.

Numerous investigations have studied miRNA profiling in patients with MS and in control groups, utilizing various sample types such as peripheral blood mononuclear cells (PBMCs), whole blood, and brain lesions. Each of these studies has identified miRNA expression profiles linked to MS. It has been observed that the levels of certain miRNAs diminish due to the influence of oncomirs. ¹² In this particular study, the expression levels of miR-449a and miR-520d were found to be lower than in healthy tissue. The miRNAs miR-449a and miR-520d-3p regulate gene expression through mechanisms namely post-translational modification, mRNA degradation, or inhibition of translation, and are implicated in various malignancies and neurological disorders. Their loss may impede the development of oligodendrocytes (the CNS’s myelin-producing cells), ¹³ and indeed, a decline in miR-520d-3p expression has been noted in individuals with nervous system problems. ⁷

It has recently been reported that miRNAs play a critical role in the Notch signaling pathway, and several miRNAs have been shown to interact with this pathway, although the exact role of miRNAs in the Notch signaling pathway remains unclear. ⁷

miR-449a controls the Notch, p53, Wnt, and cell cycle machinery, among other pathways. Of special interest is the finding that miR-449a expression is inversely correlated with Notch expression. ⁸ The Notch signaling pathway prevents oligodendrocyte maturation and myelin production by preventing the differentiation of oligodendrocyte progenitor cells during CNS development. It is believed that MS lesions also activate the Notch signaling system, blocking differentiation of oligodendrocyte progenitor cells to oligodendrocytes and thus impairing myelin production. ¹ The surface protein and Notch ligand Jagged1 (JAG1) is one of five cell surface ligands that bind to Notch receptors on oligodendrocytes signaling to inhibit their development. ¹⁴

Research has indicated that cytokine levels in patients with MS fluctuate, resulting in an imbalance between the body’s inflammatory and anti-inflammatory processes, which subsequently contributes to heightened inflammation. Consequently, cytokines are recognized as significant factors in MS progression. The miR-449a and miR-520d-3p promoters are inhibited by secretion of interleukin 13 (IL-13), a cytokine secreted by T helper type 2 (Th2) cells, CD4 cells, natural killer T cell, mast cells, leading to increased signaling through the Notch1 pathway and increased expression of downstream genes, inhibiting oligodendrocyte maturation. ¹⁴ Meanwhile, inhibiting the Notch signaling pathway may promote re-myelination. ¹⁵

miRNAs are important to pathogenesis in numerous human diseases, including various types of cancer, infection, chronic inflammations, and autoimmune diseases such as MS. ¹⁶ Fingolimod, an immunotherapy medication utilized in treating RRMS, was demonstrated to modify the expression of various coding genes and miRNAs. A prior investigation assessed the expression levels of miR-449a in the peripheral blood of MS patients undergoing treatment with Fingolimod, contrasting these levels with those found in healthy individuals. Subjects. ¹⁷

To efficiently identify miRNAs of significant relevance with MS, we developed a miRNA-focused Bayesian network utilizing publicly accessible data that compares miRNA expression profiles between MS patients and healthy individuals. Our analysis concentrated on miRNAs predicted to interact with three genes implicated in MS: LASP1, S100A6, and TUBA1C6. Through this approach, we identified two miRNAs, miRNA-449a and miR-520d-3p, as central components within the network, and we validated their dysregulation in MS through empirical methods. We anticipate that these two miRNAs play a role in the pathogenesis of MS and may serve as potential diagnostic markers in the future. Further investigation of these miRNAs in both human subjects and animal models will be crucial to clarify the underlying mechanisms, as well as exploring their potential as biomarkers for the diagnosis and treatment of MS. ^{3 , 5 , 18}

The collection of blood samples from patients diagnosed with MS presents several challenges, primarily due to the mental and psychological issues faced by these individuals. Consequently, obtaining a substantial number of samples is exceedingly difficult. Furthermore, since MS is a neurological disorder, it is not feasible to acquire brain tissue from living patients. Additionally, studies on MS encounter inherent limitations when attempting to explore subjective experiences through quantitative research methods. To enhance the validity of real-world evidence (RWE) in MS research, an integrative approach that combines various RWE data sources may be beneficial. However, this necessitates the standardization of data collection and processing, along with the establishment of consistent and transparent quality standards.

Conclusion

Findings show that MS patients have lower expression levels of hsa-miR-520d-3p and hsa-miR-449a. We predict that these miRNAs may serve as important indicators for disease diagnosis, treatment selection, assessment of treatment efficacy, and prognosis evaluation. However, further research is required to confirm the target genes associated with these miRNAs.

Acknowledgment

This article was the result of a research project approved by the University of Isfahan, Iran. The authors gratefully acknowledge the financial support for this work that was provided by the University of Isfahan. The authors thank all the patients, their families, and caregivers. The authors thank all the clinicians for their involvement and contribution to the study.

Author’s Contribution

N.K: Investigation; data curation; drafting. M.M: Formal analysis, investigation, and reviewing the manuscript. M.GhZ: Formal analysis; resources; software, and reviewing the manuscript; BJ. L: Data interpretation and reviewing the manuscript; All authors have read and approved the final manuscript and agree to be accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved.

Conflict of Interest

None declared.

References

1. Shang Y, Smith S, Hu X. Role of Notch signaling in regulating innate immunity and inflammation in health and disease. Protein Cell. 2016; 7:159-74. Publisher Full Text | DOI | PubMed [ PMC Free Article ]
2. Filippi M, Bar-Or A, Piehl F, Preziosa P, Solari A, Vukusic S, et al. Multiple sclerosis. Nat Rev Dis Primers. 2018; 4:43. DOI | PubMed
3. Alamshah N, Sari S, Mirfakhraie R. Association Study of miR-23a rs3745453 Polymorphism with Multiple Sclerosis in a Sample of Iranian Population. New Cellular and Molecular Biotechnology Journal. 2017; 7:90-8.
4. International Multiple Sclerosis Genetics C. A systems biology approach uncovers cell-specific gene regulatory effects of genetic associations in multiple sclerosis. Nat Commun. 2019; 10:2236. Publisher Full Text | DOI | PubMed [ PMC Free Article ]
5. Condrat CE, Thompson DC, Barbu MG, Bugnar OL, Boboc A, Cretoiu D, et al. miRNAs as Biomarkers in Disease: Latest Findings Regarding Their Role in Diagnosis and Prognosis. Cells. 2020; 9Publisher Full Text | DOI | PubMed [ PMC Free Article ]
6. Safari-Alighiarloo N, Rezaei-Tavirani M, Taghizadeh M, Tabatabaei SM, Namaki S. Network-based analysis of differentially expressed genes in cerebrospinal fluid (CSF) and blood reveals new candidate genes for multiple sclerosis. PeerJ. 2016; 4:e2775. Publisher Full Text | DOI | PubMed [ PMC Free Article ]
7. Ho DM, Artavanis-Tsakonas S, Louvi A. The Notch pathway in CNS homeostasis and neurodegeneration. Wiley Interdiscip Rev Dev Biol. 2020; 9:e358. DOI | PubMed
8. Hou Y, Feng F, Yang R. Effect of miR449amediated Notch signaling pathway on the proliferation, apoptosis and invasion of papillary thyroid carcinoma cells. Oncol Rep. 2020; 43:471-80. Publisher Full Text | DOI | PubMed [ PMC Free Article ]
9. Karimi N, Motovali-Bashi M, Ghaderi-Zefrehei M. Gene network reveals LASP1, TUBA1C, and S100A6 are likely playing regulatory roles in multiple sclerosis. Front Neurol. 2023; 14:1090631. Publisher Full Text | DOI | PubMed [ PMC Free Article ]
10. Trotta E. On the normalization of the minimum free energy of RNAs by sequence length. PLoS One. 2014; 9:e113380. Publisher Full Text | DOI | PubMed [ PMC Free Article ]
11. Karimi N, Motovali-Bashi M, Ghaderi-Zefrehei M. Gene network reveals LASP1, TUBA1C, and S100A6 are likely playing regulatory roles in multiple sclerosis. Front Neurol. 2023; 14:1090631. Publisher Full Text | DOI | PubMed [ PMC Free Article ]
12. Ma X, Zhou J, Zhong Y, Jiang L, Mu P, Li Y, et al. Expression, regulation and function of microRNAs in multiple sclerosis. Int J Med Sci. 2014; 11:810-8. Publisher Full Text | DOI | PubMed [ PMC Free Article ]
13. Cao L, Chen Y, Zhang M, Xu DQ, Liu Y, Liu T, et al. Identification of hub genes and potential molecular mechanisms in gastric cancer by integrated bioinformatics analysis. PeerJ. 2018; 6:e5180. Publisher Full Text | DOI | PubMed [ PMC Free Article ]
14. Giaimo BD, Oswald F, Borggrefe T. Dynamic chromatin regulation at Notch target genes. Transcription. 2017; 8:61-6. Publisher Full Text | DOI | PubMed [ PMC Free Article ]
15. Sun Y, Ji J, Zha Z, Zhao H, Xue B, Jin L, et al. Effect and Mechanism of Catalpol on Remyelination via Regulation of the NOTCH1 Signaling Pathway. Front Pharmacol. 2021; 12:628209. Publisher Full Text | DOI | PubMed [ PMC Free Article ]
16. Wu T, Chen G. miRNAs Participate in MS Pathological Processes and Its Therapeutic Response. Mediators Inflamm. 2016; 2016:4578230. Publisher Full Text | DOI | PubMed [ PMC Free Article ]
17. Ouspid E, Razazian N, Moghadasi AN, Moradian N, Afshari D, Bostani A, et al. Clinical effectiveness and safety of fingolimod in relapsing remitting multiple sclerosis in Western Iran. Neurosciences (Riyadh). 2018; 23:129-34. Publisher Full Text | DOI | PubMed [ PMC Free Article ]
18. Freiesleben S, Hecker M, Zettl UK, Fuellen G, Taher L. Analysis of microRNA and Gene Expression Profiles in Multiple Sclerosis: Integrating Interaction Data to Uncover Regulatory Mechanisms. Sci Rep. 2016; 6:34512. Publisher Full Text | DOI | PubMed [ PMC Free Article ]
