Iranian Journal of Medical Sciences

Document Type : Original Article(s)

Authors

1 Department of Chemistry, College of Science, University of Kirkuk, Kirkuk, Iraq

2 Department of Applied Geology, College of Science, University of Kirkuk, Kirkuk, Iraq

Abstract

Background: The use of antibiotics with or without prescription is increasing worldwide. With certain limitations, metronidazole (MTZ) is extensively used as an antibacterial and antiparasitic drug. Derivatives of 1,2,4-oxadiazole (ODZ) are used to modify the chemical structure of drugs. The present study aimed to synthesize new MTZ-ODZ derivatives that could potentially lead to new medications.
Methods: The reaction of MTZ with ethyl chloroacetate and potassium carbonate anhydrous was used to produce compound 7. This compound was treated with hydrazine hydrate in methanol to obtain compound 8. Carbon disulfide and potassium hydroxide were then added to obtain compound 9, which was then mixed with various α-haloketones to obtain compounds 10a to 10f. Subsequently, the structures of the new MTZ-ODZ derivatives were determined.
Results: All new compounds exhibited excellent activity against all tested organisms. The synthesized compounds showed a significant radical scavenging activity. The IC50 value for compounds 10a, 10b, 10c, 10d, 10e, and 10f was 70.42±0.15, 70.52±0.54, 85.21±0.85, 80.10±0.46, 82.52±0.13, and 70.45±0.12 g/mL, respectively. In terms of antigiardial activity, the IC50 value for compounds 10a,10b, 10c, and 10d ranged from 1.31±0.11 µM to 2.26±0.49 µM. In contrast, the IC50 for MTZ was 3.71±0.27 µM. Compound 10f showed the highest antigiardial activity with an IC50 value of 0.88±0.52 µM.
Conclusion: Most of the MTZ-ODZ derivatives showed high radical scavenging activity in the benzene ring due to the activation of certain groups, such as OCH3, NO2, and OH. The results suggest that the newly synthesized compounds could be used as an antiparasitic drug.

Keywords

What’s Known

Oxadiazole is associated with azole derivatives exhibiting biological and pharmacological properties. Metronidazole is an antibiotic with a 5-nitroimidazole structure and is one of the most potent drugs used to treat giardiasis. However, its use is limited due to its ineffectiveness in children and the emergence of drug-resistant strains.

What’s New

Synthesis of novel metronidazole derivatives involving 1,3,4-oxadiazole moiety is presented. All the developed compounds are biologically active, exhibit significant radical scavenging activity, and excellent antimicrobial and antibacterial properties. It is hypothesized that they may even have additional pharmacological properties against other diseases.

Introduction

Nitrogen- and oxygen-containing heterocyclic compounds exhibit various key biological properties. Azoles are a class of five-membered heterocyclic compounds that instead of carbon atoms contain nitrogen and another heteroatom (e.g., oxygen or sulfur) as part of the ring. 1 Oxadiazole is an azole derivative in which the five-membered ring is made up of oxygen and two nitrogen atoms. Depending on the position of the heteroatoms, there are four isomers of oxadiazole, namely 1,2,4-, 1,3,4-, 1,2,3-, and 1,2,5-oxadiazoles (figure 1). Among these, 1,2,4- and 1,3,4-oxadiazoles are better known and well-studied. They are isolated from natural products and have important biological and chemical properties. 2 , 3 Derivatives of 1,2,4-oxadiazole are widely used in the chemical structure of drugs due to their biological properties such as anti-inflammatory, antiviral, antifungal, 4 anticancer, 5 anticonvulsant, 6 analgesic, 7 and antidiabetic. 8 , 9 For example, antibacterial drugs derived from 1,2,4-oxadiazole are used to treat Mycobacterium tuberculosis. 10

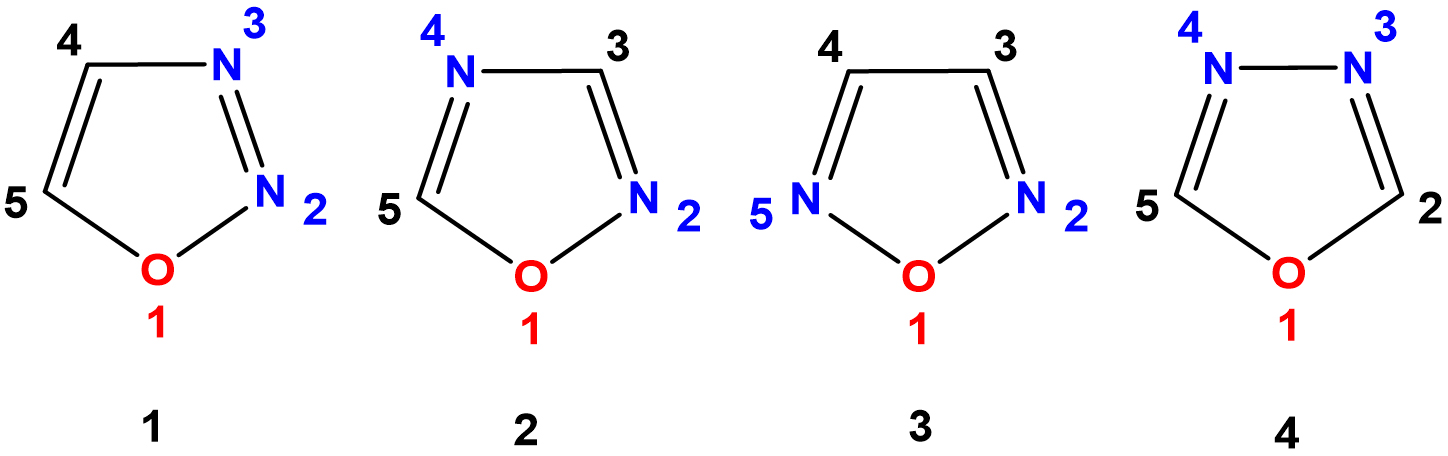

Figure 1. The structure of the four isomers of oxadiazole is illustrated.

The use of antibiotics with or without prescription is increasing worldwide with the consequence of more bacteria becoming resistant to antibiotics. 11 , 12 It is therefore important to develop new antimicrobial agents that can combat drug resistance and prevent the less commonly diagnosed neurotoxicity. 13 Metronidazole (MTZ), an antibiotic with a chemical structure of 5-nitroimidazole, is extensively used as an antibacterial and antiparasitic drug due to its effectiveness and integrity. 14 However, polyneuropathy due to MTZ therapy has been reported. 15 MTZ is one of the most effective drugs used in the treatment of giardiasis. However, its use is limited due to its ineffectiveness in children and the emergence of drug-resistant strains. 16 MTZ has been widely used in topical and systematic applications for more than 50 years. However, there is still insufficient information regarding its use as an antioxidant. A previous study reported that MTZ does not show direct antioxidant activity in in vitro global systems. 17

In general, the design of MTZ derivatives aims at reducing the common side effects of the therapeutic agent and synthesizing a new drug to prevent some microorganisms from becoming resistant. Herein, we report the synthesis of novel MTZ derivatives as a metronidazole-oxadiazole (MTZ-ODZ) compound with a 1,3,4-oxadiazole moiety. Treatment with various α-haloketones synthesized novel thio-substituted oxadiazole derivatives of MTZ as a spacer, leading to a new drug with less antimicrobial resistance.

Materials and Methods

The study was approved by the Ethics Committee of Kirkuk University, Kirkuk, Iraq (code: 169).

Instrumentation

A StuartTM SMP3 melting point apparatus (Scientific Laboratory Supplies Ltd, Nottingham, England) was used to measure uncorrected melting points. Thin layer chromatography (Merck, Darmstadt, Germany) monitored the reactions using a pre-coated silica gel plate (kieselgel 60G/F254, 0.25 mm). A Fourier transform infrared spectrophotometer (FTIR-4200, PerkinElmer, Shimadzu, Japan) was used to record the FTIR spectra at 400-4000 cm-1. A Bruker Avance AV-500 spectrometer (Bruker, Bremen, Germany) recorded the 1H and 13C nuclear magnetic resonance (NMR) spectra. A Shimadzu UV-1800 UV/Vis scan spectrophotometer (Shimadzu, Kyoto, Japan) was used to record the ultraviolet, and visible light absorbed by the samples. Combustion analysis was performed on a Carlo Erba automated elemental analyzer, model 1106 (Carlo Erba, Milan, Italy). 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) was provided by Sigma-Aldrich, Baghdad, Iraq. The cell lines (CaCo-2 and Vero) were purchased from Thermo Fisher Scientific, Waltham, USA. All the synthesis reagents were supplied by Sigma-Aldrich, Baghdad, Iraq.

Synthesis of MTZ-ODZ Derivatives

The MTZ-ODZ was prepared according to the method described in a previous study. 18 The compound was synthesized by mixing 0.01 mol MTZ 5 with ethyl chloroacetate 6 and anhydrous potassium carbonate in 15 mL of dimethylformamide, then stirred at 25 °C for 10 hours. 19 Hydrazine hydrate (0.02 mol) was added to a solution of compound 7 (0.01 mol) dissolved in methanol (15 mL) and refluxed for 10 hours. 20 Then, 95% ethanol (15 mL), CS2 (0.01 mol), and potassium hydroxide (KOH) (0.01 mol) were added to the reaction mixture of compound 8 (0.01 mol), and the solution was heated for 10 hours. The solution was then concentrated and acidified with dilute HCl. The desired compound 5-[(2-(2-methyl-5-nitro-1H-imidazol-1-yl)ethoxy)methyl]-1,3,4-oxadiazole-2-thiol 9 was purified using column chromatography (figure 2).

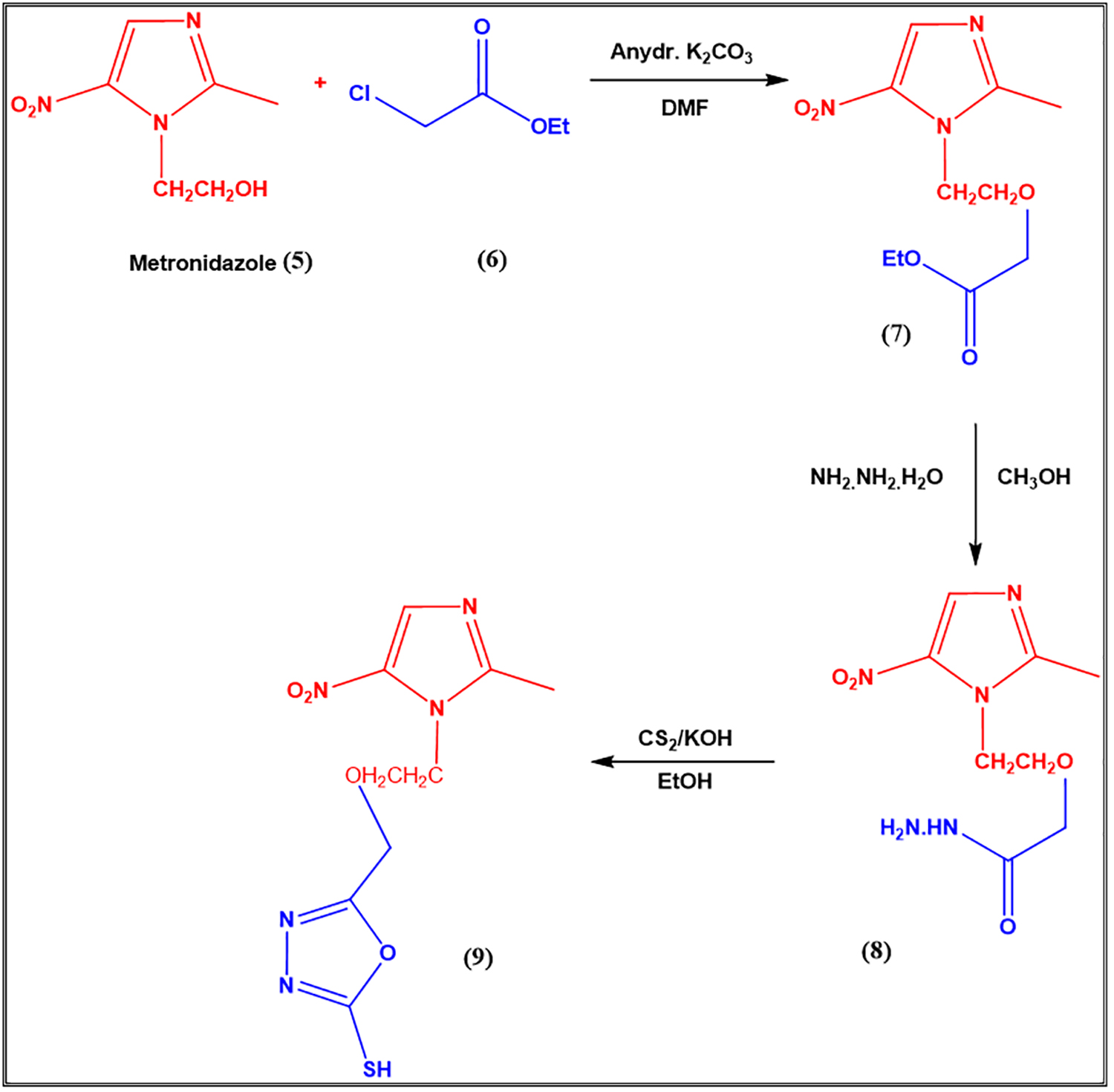

Figure 2. Illustration of the synthetic route used to synthesize metronidazole-oxadiazole derivatives.

The final step of the synthetic scheme was the preparation of a series of unique thio-substituted oxadiazole derivatives of MTZ (10a-f). 21 A solution of compound 9 (0.1 mol) in ethanol (0.1 mol) of six different aromatic α-haloketones was mixed and refluxed for six hours. Next, ice-cold water was used to quench the reaction and solidify the mixture. Column chromatography was used to isolate and purify the required product. Column chromatography using petrol:ethyl acetate (1:1), as eluent was used for purification to obtain the desired derivatives of 1-(4-substituted-phenyl)-2-[(5-((2-(2-methyl-5-nitro-1H-imidazol-1-yl)ethoxy)methyl)-1,3,4-oxadiazol-2-yl)thio]ethan-1-one (10a-f) (figure 3).

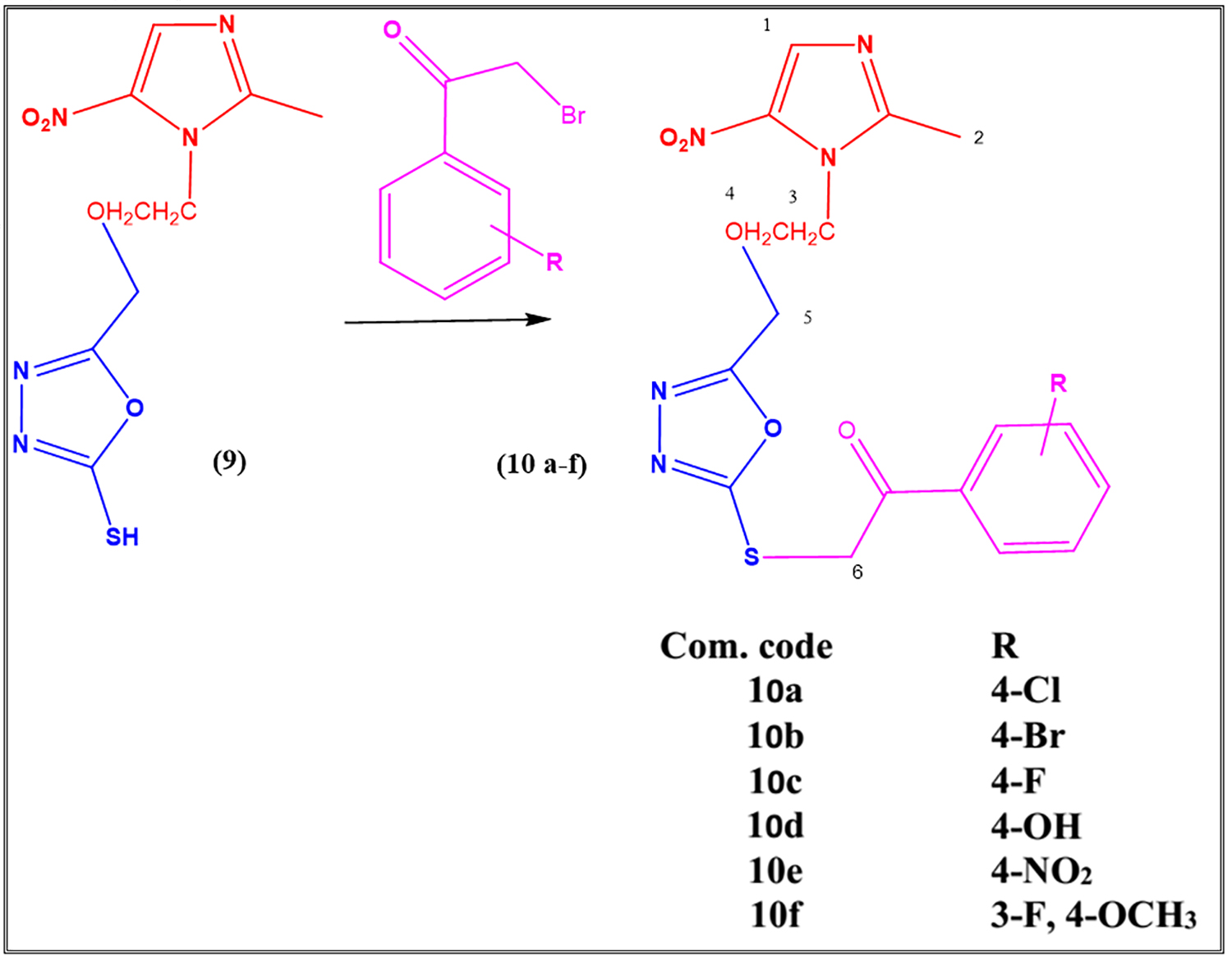

Figure 3. Illustration of the synthetic route of thio-substituted metronidazole-oxadiazole derivatives.

Biological Activity of MTZ-ODZ Compound

Antioxidant Evaluation

The newly developed compounds (10 a-f) and the crude products were subjected to a radical scavenging assay to evaluate their antioxidant properties using 1,1-diphenylpicryl-hydrazyl (DPPH). 22 Various concentrations of the compounds in methanol (50, 75, and 100 mg/mL) were added to 5 mL of 0.005% (w/v) methanol solution of DPPH and incubated at room temperature for 45 min. The absorbance was measured against a blank at 517 nm. The inhibition (%) of free radical production was calculated according to the formula: Inhibition (%)=[(controlA-sampleA)/blankA]×100. SampleA is the absorbance of the test sample, and controlA is the absorbance of all reagents except the test compound. Tests were carried out in triplicate. The IC50 value was determined using a fitted line to a plot. IC50 indicates the sample required to inhibit 50% of the DPPH free radicals.

Antimicrobial Activity

The antimicrobial evaluation of the crude and synthesized derivatives was performed using the disc diffusion method (DDM). 23 - 25 The experiment was carried out in vitro using Petri dishes. Three strains of Gram-positive and Gram-negative bacteria were used, including Staphylococcus aureus, Streptococcus pyogenes, viridans streptococci, Providencia spp., Serratia marcescens, and Enterobacter cloacae. Dimethyl sulfoxide (DMSO) as a solvent and a concentration of 60 µg/mL from each sample were used. Agar plates were used to culture the bacteria and incubated for 24 hours at 37 °C, pH 7.4±0.2. The bacteria strains were obtained from Kirkuk Hospital (Kirkuk, Iraq). Table 1 shows the antibacterial activity of both the crude and synthesized MTZ-ODZ derivatives.

Gram-positive bacteria
Compound Staphylococcus aureus Streptococcus pyogenes Viridans streptococci
Metronidazole - - -
10a ++ ++ +++
10b ++ ++ ++
10c ++ - ++
10d + + ++
10e ++ + +++
10f +++ +++ +++
DMSO - - -
Gram-negative bacteria
Compound Providencia spp. Serratia marcescens Enterobacter cloacae
Metronidazole - - -
10a ++ ++ +++
10b ++ ++ +++
10c + + +
10d ++ ++ +
10e ++ + ++
10f +++ +++ +++
DMSO - - -
-No activity; +10 mm<inhibition diameter<15 mm; ++15 mm<inhibition diameter<20 mm; +++Inhibition diameter≥20 mm); DMSO: Dimethyl sulfoxide
Table 1.Evaluation of the antibacterial activity of crude metronidazole and synthesized metronidazole-oxadiazole derivatives (10a-f) against Staphylococcus aureus, Streptococcus pyogenes, and viridans streptococci bacteria by calculating the diameter of the inhibition zone

Antigiardial Activity

Using an in vitro bioassay, the antigiardial activity of the derivatives was evaluated, and their biological activity was compared to that of standard MTZ.

Cytotoxicity Assay

MTT assay was used to assess cytotoxicity. 26 , 27 Cells were seeded in a 96-well plate (Sigma-Aldrich) with a density of 35,000 in 250 µL volume per well. The coated plate was stored at 37 °C with 6% CO2 for 24 hours. After 48 hours, different concentrations (0.5 to 50 µM, in RPMI containing 0.6% DMSO) of the samples were added to the coated plate. A culture medium containing 0.6% DMSO was used as the control group. The coated plate was treated with 26 µL of MTT solution (2.6 mg/mL) and stored at 37 °C for four hours. The dish was washed with phosphate-buffered saline (pH 7.4), followed by the addition of DMSO (150 µL) per well. The absorbance was measured at a wavelength of 575-695 nm using an iMARKTM microplate absorbance reader (Bio-Rad Laboratories S.r.l, Segrate, Italy).

Statistical Analysis

Data were analyzed using SigmaPlot software, version 12.5 (Regional office in India). The results of cytotoxicity were expressed as mean±SD.

Results

Chemistry

A number of MTZ-ODZ derivatives were selected, and the reaction of MTZ with chloroacetic acid ethyl ester in the presence of K2CO3 was used to develop compound 7. The structure of compound 7 was determined using FTIR, which showed the characteristics of the carbonyl group, 1H NMR, and 13C NMR. All the charts are shown in the supplementary data file_______________________________ .

Compound 7: Yield: 80%, m.p. 238-240 °C. I.R (KBr, cm-1) 1710 (C=O), 1600 (C=N), 1455 (C=C Ar), 1148 (C-O-C), 743, 695. δH (500 MHz, DMSO-d6), 6.74 (1H, s), 4.59 (2H, m), 4.38 (2H, q, J6.0), 4.32 (2H, m), 4.29 (1H, m), 4.02 (2H, t, J4.4), 2.39 (2H, s), 1.57 (3H, t, J 6.0). δC (125 MHz, DMSO-d6) 171.10, 149.16, 139.22, 133.15, 69.02, 67.49, 61.14, 31.37, 14.66, 14.10. Anal.% calc./found for C10H15N3O5 (m.w. 257.10) Elemental Analysis: C, 46.69/45.52; H, 5.88/5.75; N, 16.33/15.98; O, 31.10/32.54.

Compound 7 was treated with hydrazine hydrate in methanol to obtain compound 8 after heating for 10 hours. Solid 8 was purified by recrystallization from ethanol and the addition of dilute HCl. Then, 0.01 mol from KOH and carbon disulfide was added to the solution of compound 8, and the reaction mixture refluxed for 12 hours to produce compound 9 with a 70% yield. 28 FTIR, 1H NMR, and 13C NMR for the structure of compound 9 are presented below.

Compound 9: Yield: 70%, m.p. 221-223 °C. I.R (KBr, cm-1) 1600 (C=N), 1458 (C=C Ar), 1150 (C-O-C), 1253, 1190 (C-S-C), 743, 695. δH (500 MHz, DMSO-d6) 7.08 (1H, s), 5.55 (1H, s), 3.52 (1H, t, J5.5), 3.41 (1H, t, J5.5), 3.00 (2H, t, J5.5), 2.77 (1H, s), 1.47 (3H, s). δC (125 MHz, DMSO-d6) 178.59, 153.02, 149.16, 139.22, 133.15, 69.02, 59.01, 31.37, 14.10. Anal. % calc./found for C9H11N5O4S (m.w. 285.28) Elemental Analysis: C, 37.89/36.85; H, 3.89/3.57; N, 24.55/25.78; O, 22.43/23.41; S, 11.24/12.5.

In an oil bath, compound 9 and six different aromatic α-haloketones were mixed in ethanol and heated for six hours at 105-110 ˚C. The resulting solid product was separated and purified by column chromatography using petrol:ethyl acetate (1:1) as eluent to obtain the desired compounds 10a-f. FTIR, 1H NMR, and 13C NMR for the structure of synthesized derivatives are presented below.

Compound 10a: Yield: 65%, m.p. 115-117 ˚C. I.R (KBr, cm-1) 1711 (C=O), 1601 (C=N), 1456 (C=C Ar), 1147 (C-O-C), 1253, 1190 (C-S-C), 743, 695. δH (500 MHz, DMSO-d6) 6.41 (1H, s), 6.35-6.26 (3H, m), 6.17 (1H, d, J7.3), 3.28 (2H, s), 3.02 (2H, s), 2.97 (2H, t, J3.7), 2.60 (2H, t, J3.7), 1.10 (3H, s). δC (125 MHz, DMSO-d6) 193.97, 165.44, 155.70, 154.19, 149.25, 139.31, 138.61, 133.24, 129.88, 128.49, 123.11, 110.41, 71.00, 59.10, 56.84, 42.50, 39.52, 14.19. Anal. % calc./found for C17H16ClN5O5S (m.w. 437.86). Elemental Analysis: C, 46.63/45.34; H, 3.68/3.12; Cl, 8.10/7.94; N, 16.00/15.5; O, 18.27/17.45; S, 7.32/6.45.

Compound 10b: Yield: 75%, m.p. 119-121 ˚C. I.R (KBr, cm-1) 1721 (C=O), 1600 (C=N), 1459 (C=C Ar), 1150 (C-O-C), 1263, 1192 (C-S-C), 744, 697. δH (500 MHz, DMSO-d6), 7.98 (2H, d, J7.5), 7.70 (2H, d, J7.5), 6.80 (1H, s), 4.98 (2H, s), 4.53 (2H, s), 4.48 (1H, t, J3.7), 4.38 (1H, t, J3.7), 4.12 (2H, t, J3.7), 2.52 (3H, s). δC (125 MHz, DMSO-d6) 193.94, 164.45, 154.29, 154.96, 140.19, 138.81, 142.40, 142.40, 135.09, 131.09, 130.13, 129.70, 72.00, 60.10, 45.29, 23.61, 13.42. Anal. % calc./found for C17H16BrN5O5S (m.w. 482.31) Elemental Analysis: C, 42.34/42.15; H, 3.34/3.84; Br, 16.57/15.64; N, 14.52/15.24; O, 16.59/17.45; S, 6.65/6.31.

Compound 10c: Yield: 67%, m.p. 121-123 °C. I.R (KBr, cm-1) 1701 (C=O), 1621 (C=N), 1449 (C=C Ar), 1150 (C-O-C), 1263, 1195 (C-S-C), 741, 694. δH (500 MHz, DMSO-d6) 7.81-7.68 (2H, m), 7.07 (2H, t, J7.8), 6.60 (1H, s), 4.53 (1H, s), 4.37 (2H, t, J7.1), 4.19 (2H, s), 4.09 (1H, t, J7.1), 3.81 (2H, t, J7.1), 1.24 (3H, t, J6.7). δC (125 MHz, DMSO-d6) 193.94, 168.26, 166.17, 165.44, 154.19, 153.96, 139.19, 133.20, 133.17, 131.13, 131.08, 129.12, 116.27, 116.06, 71.00, 59.10, 43.28, 22.60, 12.42. Anal. % calc./found for C17H16FN5O5S (m.w. 421.40) Elemental Analysis: C, 48.45/47.54; H, 3.83/3.12; F, 4.51/3.87; N, 16.62/15.47; O, 18.98/17.87; S, 7.61/7.12.

Compound 10d: Yield: 55%, m.p. 134-136 °C. I.R (KBr, cm-1) 3200-3600 (OH), 1712 (C=O), 1631 (C=N), 1436 (C=C Ar), 1137 (C-O-C), 1233, 1150 (C-S-C), 743, 698. δH (500 MHz, DMSO-d6) 8.35 (1H, s), 7.73 (1H, s), 7.61 (2H, d, J7.5), 6.83 (2H, d, J7.5), 4.44 (2H, s), 4.25-4.11 (3H, m), 4.05 (1H, t, J4.0), 3.74 (2H, t, J4.0), 1.24 (3H, t, J6.7). δC (125 MHz, DMSO-d6) 193.94, 165.44, 163.01, 154.19, 153.96, 139.19, 131.83, 129.12, 128.62, 116.31, 71.00, 59.10, 43.28, 22.60, 12.42. Anal. % calc./found for C17H17N5O6S (m.w. 419.41). Elemental Analysis: C, 48.68/47.45; H, 4.09/5.10; N, 16.70/15.54; O, 22.89/21.65; S, 7.64/6.95.

Compound 10e: Yield: 57%, m.p. 127-129 °C. I.R (KBr, cm-1) 1700 (C=O), 1600 (C=N), 1450 (C=C Ar), 1140 (C-O-C), 1250, 1191 (C-S-C), 742, 695. δH (500 MHz, DMSO-d6) 6.87 (1H, d, J7.4), 6.48 (1H, s), 6.45-6.36 (2H, m), 3.24 (2H, s), 3.17 (1H, t, J7.2), 2.93 (2H, s), 2.73 (1H, t, J7.2), 2.57-2.49 (3H, m), 1.08 (3H, s). δC (125 MHz, DMSO-d6) 193.97, 165.44, 154.41, 154.19, 149.25, 142.95, 142.18, 139.31, 133.24, 124.78, 124.15, 114.80, 71.00, 59.10, 56.84, 42.50, 39.52, 14.19. Anal. % calc./found for C17H16N6O7S (m.w. 448.08) Elemental Analysis: C, 45.54/44.54; H, 3.60/2.94; N, 18.74/17.54; O, 24.98/25.14; S, 7.15/6.87.

Compound 10f: Yield: 65%, m.p. 132-134 °C. I.R (KBr, cm-1) 1710 (C=O), 1603 (C=N), 1459 (C=C Ar), 1150 (C-O-C), 1251, 1191 (C-S-C), 742, 693. δH (500 MHz, DMSO-d6) 7.74 (1H, s), 7.51 (2H, ddd, J16.0, 7.7, 1.4), 6.96 (1H, dd, J7.5, 5.0), 4.33 (2H, s), 4.29 (1H, t, J7.2), 4.20 (2H, s), 4.04 (1H, t, J7.2), 3.75 (2H, t, J7.2), 3.72 (3H, s), 1.25 (3H, t, J6.7). δC (125 MHz, DMSO-d6) 193.99, 193.96, 165.44, 154.22, 154.19, 153.96, 153.03, 152.82, 152.13, 139.19, 129.72, 129.66, 129.12, 126.47, 126.44, 115.76, 115.55, 114.42, 114.37, 71.00, 59.10, 56.86, 56.82, 43.28, 22.60, 12.42. Anal. % calc./found for C18H18FN5O6S (m.w. 451.43) Elemental Analysis: C, 47.89/46.54; H, 4.02/5.47; F, 4.21/5.14; N, 15.51/16.47; O, 21.26/22.14; S, 7.10/6.98.

Antimicrobial Activity

The crude MTZ and MTZ-ODZ were evaluated for antimicrobial activity using the DDM method. Three strains from both Gram-positive and Gram-negative bacteria were used. The antibacterial activity was measured by calculating the diameter of the zone of inhibition around the disc (table 1).

Antigiardial Activity

In vitro bioassay was used to evaluate the efficacy of antigiardial compounds (table 2). The IC50 value of the compounds 10a, 10b, 10c, and 10d ranged from 1.31±0.11 to 2.26±0.49 µM, while it was 3.71±0.27 µM for MTZ. Compound 10e showed the best antigiardial activity with an IC50 value of 0.88±0.52 µM.

Compound Giardia intestinalis
Metronidazole 3.71±0.27
10a 2.15±0.07
10b 1.81±0.30
10c 1.31±0.11
10d 2.26±0.49
10e 11.20±0.78
10f 0.88±0.52
Data are drived from triplicate tests and expressed as mean±SD µM of IC50 values
Table 2.Antigiardial activity of metronidazole and synthesized metronidazole-oxadiazole

Antioxidant Activity

The crude and synthesized derivatives were further assessed for their antioxidant properties using DPPH (table 3). Most of the synthesized compounds showed a significant radical scavenging activity. The IC50 values for compounds 10a, 10b, 10c, 10d, 10e, and 10f were 70.42±0.15, 70.52±0.54, 85.21±0.85, 80.10±0.46, 82.52±0.13, and 70.45±0.12 µg/mL, respectively. The standard rate was 60.10 µg/mL at 100 µg/mL. The results show that radical scavenging activity in DPPH increased with an increase in concentration.

Compound Concentration (µg/mL)
50 75 100 IC50
Metronidazole ns ns ns ns
10a 37.12±0.70 38.21±0.54 38.10±1.72 70.42±0.15
10b 39.14±0.22 40.57±0.32 42.71±0.25 70.52±0.54
10c 65.21±0.26 66.30±0.35 67.21±0.29 85.21±0.85
10d 55.10±0.42 56.24±0.37 27.31±0.35 80.10±0.46
10e 60.21±1.45 62.30±0.20 65.20±0.15 82.52±0.13
10f 61.70±0.31 67.76±0.29 71.98±0.17 70.45±0.12
Ascorbic acid 78.01±0.75 81.01±0.85 84.21±0.41 60.10±0.82
Blank ns ns ns ns
ns: No scavenging activity; Data are drived from triplicate tests and expressed as mean±SD.
Table 3.In vitro antioxidant activity of crude and synthetic derivatives using different concentrations of the compounds (50, 75, and 100 µg/mL)

Cytotoxicity Assessment

MTT assay was used to measure cytotoxicity. In vitro activity of compounds 10a-10f was evaluated using Caco-2 and Vero cells. The results of cell viability (IC50 values) are presented in table 4.

Compound Cell viability* (%)
Vero cells Caco-2 cells
10a 98.4±3.2a 91.8±19.2
10b 103.5±4.4 97.5±4.2
10c 102.4±7.1 112.5±5.2
10d 106.2±8.2 145.8±4.3
10e 104.2±6.2 95.7±4.4
10f 106.7±2.2 109.4±4.5
*6 µM from the derivatives were used in the assays, aData from triplicate tests and expressed as mean±SD.
Table 4.Cell viability of Caco-2 and Vero cells after two-day treatment with compounds 10a-f.

Discussion

A number of MTZ-ODZ derivatives were developed and 1H NMR, 13C NMR, FTIR, and elemental analysis were used to confirm the structure of the new compounds. Evaluation of antimicrobial activity showed that the crude MTZ had no antibacterial activity against the selected bacteria strains. This was expected, since MTZ is active against anaerobic bacteria, whereas the selected bacteria were aerobic. Since the 1,3,4-oxadiazole group was biologically added to MTZ, 5 all MTZ-ODZ derivatives had good antibacterial activity against the selected bacteria given the extent of the inhibition zones.

Evaluation of the antigiardial activity showed that all derivatives possessed biological activity against Giardia and that the developed compounds can be used to develop a new antiparasitic drug. This is significantly important due to the scarcity of available drugs that can combat anaerobic parasitic protozoa and bacteria. Modification of original drugs at the molecular level allows a better understanding of the nature of antibiotic resistance of anaerobic pathogens to regular pharmaceuticals.

The result of the antioxidant evaluation showed that, compared to the original drug, most of the synthesized compounds had a significant radical scavenging activity because of the addition of OCH3, NO2, and OH. The significant activity of the developed compound could be attributed to nitrogen, oxygen, and sulfur atoms.

Cytotoxicity was measured by MTT assay to determine in vitro activity of the new compounds using Caco-2 and Vero cells. In line with previous studies, 29 , 30 our results showed that most derivatives (6 µM) were not cytotoxic to these cells.

Some drugs consist of oxadiazole core moiety, e.g., Bredon (anti-inflammatory), Irrigor (anesthetic, vasodilator), and Libexin (antitussive). 31 In a previous study, Pattanayak, and Kaliyaperumal incorporated bioactive pharmacophores such as 1,3,4-thiadiazole and Schiff base moiety into MTZ without altering the nitro group. They used the synergy resulting from the inclusion of the imidazole ring, thiadiazole ring, and Schiff’s base pharmacophore. Since each of these pharmacophores had antibacterial and anthelmintic activity, their incorporation into a single molecule was expected to improve the antibacterial and anthelmintic activity of the compound as well as its safety and efficacy. 32

Conclusion

New MTZ-ODZ compounds were synthesized and pharmacological properties (e.g., antioxidant, antimicrobial, and antigiardial) were determined. Cell viability was evaluated by treating Caco-2 and Vero cells with the compounds. Compared to the crude MTZ, all compounds exhibited moderate to good antibacterial activity. Compounds 10d-f showed significant antimicrobial activity and 10f significant antigiardial activity. Most of the synthesized compounds showed significant radical scavenging activity and were also found to have biological properties. Further studies on the synthesized compounds are recommended to identify additional pharmacological properties against other diseases associated with free radicals.

Acknowledgment

The authors would like to thank the College of Science, University of Kirkuk (Kirkuk, Iraq) for their support in conducting biological activity assays.

Authors’ Contribution

M.M: Study concept and design, data analysis and interpretation, writing the manuscript. N.H: Conducting experiments, data analysis, and interpretation, preparing reagents, materials, analysis tools, and data, and writing the manuscript. Both authors have read and approved the final manuscript and agree to be accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved.

Conflict of Interest

None declared.

References

  1. Benassi A, Doria F, Pirota V. Groundbreaking Anticancer Activity of Highly Diversified Oxadiazole Scaffolds. Int J Mol Sci. 2020; 21Publisher Full Text | DOI | PubMed
  2. Bostrom J, Hogner A, Llinas A, Wellner E, Plowright AT. Oxadiazoles in medicinal chemistry. J Med Chem. 2012; 55:1817-30. DOI | PubMed
  3. de Oliveira CS, Lira BF, Barbosa-Filho JM, Lorenzo JG, de Athayde-Filho PF. Synthetic approaches and pharmacological activity of 1,3,4-oxadiazoles: a review of the literature from 2000-2012. Molecules. 2012; 17:10192-231. Publisher Full Text | DOI | PubMed
  4. Sreenivasulu R, Tej MB, Jadav SS, Sujitha P, Kumar CG, Raju RR. Synthesis, anticancer evaluation and molecular docking studies of 2, 5-bis (indolyl)-1, 3, 4-oxadiazoles, Nortopsentin analogues. Journal of Molecular Structure. 2020; 1208:127875. DOI
  5. Vaidya A, Pathak D, Shah K. 1,3,4-oxadiazole and its derivatives: A review on recent progress in anticancer activities. Chem Biol Drug Des. 2021; 97:572-91. DOI | PubMed
  6. Nazar S, Siddiqui N, Alam O. Recent progress of 1,3,4-oxadiazoles as anticonvulsants: Future horizons. Arch Pharm (Weinheim). 2020; 353:e1900342. DOI | PubMed
  7. Lelyukh M, Martynets M, Kalytovska M, Drapak I, Harkov S, Chaban T, et al. Approaches for synthesis and chemical modification of non-condensed heterocyclic systems based on 1, 3, 4-oxadiazole ring and their biological activity: A review. Journal of Applied Pharmaceutical Science. 2020; 10:151-65. DOI
  8. Kharche AA, Bairagi SH, Gorde NK, Laddha SS. 1, 3, 4-Oxadiazole: A New Profile of Biological Activities. Asian Journal of Research in Chemistry. 2011; 4:1-12.
  9. Yu W, Huang G, Zhang Y, Liu H, Dong L, Yu X, et al. I2-mediated oxidative C-O bond formation for the synthesis of 1,3,4-oxadiazoles from aldehydes and hydrazides. J Org Chem. 2013; 78:10337-43. DOI | PubMed
  10. Zarafu I, Matei L, Bleotu C, Ionita P, Tatibouet A, Paun A, et al. Synthesis, Characterization, and Biologic Activity of New Acyl Hydrazides and 1,3,4-Oxadiazole Derivatives. Molecules. 2020; 25Publisher Full Text | DOI | PubMed
  11. Klein EY, Milkowska-Shibata M, Tseng KK, Sharland M, Gandra S, Pulcini C, et al. Assessment of WHO antibiotic consumption and access targets in 76 countries, 2000-15: an analysis of pharmaceutical sales data. Lancet Infect Dis. 2021; 21:107-15. DOI | PubMed
  12. Morgan DJ, Okeke IN, Laxminarayan R, Perencevich EN, Weisenberg S. Non-prescription antimicrobial use worldwide: a systematic review. Lancet Infect Dis. 2011; 11:692-701. Publisher Full Text | DOI | PubMed
  13. Bhattacharyya S, Darby RR, Raibagkar P, Gonzalez Castro LN, Berkowitz AL. Antibiotic-associated encephalopathy. Neurology. 2016; 86:963-71. DOI | PubMed
  14. Lofmark S, Edlund C, Nord CE. Metronidazole is still the drug of choice for treatment of anaerobic infections. Clin Infect Dis. 2010; 50:S16-23. DOI | PubMed
  15. Goolsby TA, Jakeman B, Gaynes RP. Clinical relevance of metronidazole and peripheral neuropathy: a systematic review of the literature. Int J Antimicrob Agents. 2018; 51:319-25. DOI | PubMed
  16. Solaymani-Mohammadi S, Genkinger JM, Loffredo CA, Singer SM. A meta-analysis of the effectiveness of albendazole compared with metronidazole as treatments for infections with Giardia duodenalis. PLoS Negl Trop Dis. 2010; 4:e682. Publisher Full Text | DOI | PubMed
  17. Szentmihalyi K, Sule K, Egresi A, Blazovics A, May Z. Metronidazole does not show direct antioxidant activity in in vitro global systems. Heliyon. 2021; 7:e06902. Publisher Full Text | DOI | PubMed
  18. Cacic M, Molnar M, Sarkanj B, Has-Schon E, Rajkovic V. Synthesis and antioxidant activity of some new coumarinyl-1,3-thiazolidine-4-ones. Molecules. 2010; 15:6795-809. Publisher Full Text | DOI | PubMed
  19. Mohammed IA, Subrahmanyam E. Synthesis, characterization and antimicrobial activity of some substituted N′-arylidene-2-(quinolin-8-yloxy) aceto hydrazides. Acta Pharmaceutica Sciencia. 2009; 51:163-8.
  20. Bhandari SV, Bothara KG, Raut MK, Patil AA, Sarkate AP, Mokale VJ. Design, synthesis and evaluation of antiinflammatory, analgesic and ulcerogenicity studies of novel S-substituted phenacyl-1,3,4-oxadiazole-2-thiol and Schiff bases of diclofenac acid as nonulcerogenic derivatives. Bioorg Med Chem. 2008; 16:1822-31. DOI | PubMed
  21. Bobade VD, Patil SV, Gaikwad ND. Synthesis and biological evaluation of new thiosubstituted oxadiazole derivatives of coumarin under solvent-free conditionss. Journal of Chemical Research. 2012; 36:25-8. DOI
  22. Padmaja A, Rajasekhar C, Muralikrishna A, Padmavathi V. Synthesis and antioxidant activity of oxazolyl/thiazolylsulfonylmethyl pyrazoles and isoxazoles. Eur J Med Chem. 2011; 46:5034-8. DOI | PubMed
  23. Al-esnawy A, Ereiba KT, Bakr AM, Abdraboh A. Characterization and antibacterial activity of Streptomycin Sulfate loaded Bioglass/Chitosan beads for bone tissue engineering. Journal of Molecular Structure. 2021; 1227:129715. DOI
  24. Yücel A, Sezer S, Birhanlı E, Ekinci T, Yalman E, Depci T. Synthesis and characterization of whitlockite from sea urchin skeleton and investigation of antibacterial activity. Ceramics International. 2021; 47:626-33. DOI
  25. Zbakh H, Chiheb H, Bouziane H, Sánchez VM, Riadi H. Antibacterial activity of benthic marine algae extracts from the Mediterranean coast of Morocco. Journal of Microbiology, Biotechnology and Food Sciences. 2021; 2021:219-28.
  26. Alley MC, Scudiero DA, Monks A, Hursey ML, Czerwinski MJ, Fine DL, et al. Feasibility of drug screening with panels of human tumor cell lines using a microculture tetrazolium assay. Cancer Res. 1988; 48:589-601. PubMed
  27. Mosmann T. Rapid colorimetric assay for cellular growth and survival: application to proliferation and cytotoxicity assays. J Immunol Methods. 1983; 65:55-63. DOI | PubMed
  28. Mahesh M, Bheemaraju G, Manjunath G, Venkata Ramana P. Synthesis of new oxadiazole, pyrazole and pyrazolin-5-one bearing 2-((4-methyl-2-oxo-2H-chromen-7-yl)oxy)acetohydrazide analogs as potential antibacterial and antifungal agents. Ann Pharm Fr. 2016; 74:34-44. DOI | PubMed
  29. Costa DCS, de Almeida GS, Rabelo VW, Cabral LM, Sathler PC, Alvarez Abreu P, et al. Synthesis and evaluation of the cytotoxic activity of Furanaphthoquinones tethered to 1H-1,2,3-triazoles in Caco-2, Calu-3, MDA-MB231 cells. Eur J Med Chem. 2018; 156:524-33. DOI | PubMed
  30. Chipoline IC, Alves E, Branco P, Costa-Lotufo LV, Ferreira VF, Silva FCD. Synthesis and Cytotoxic Evaluation of 1H-1,2,3-Triazol-1-ylmethyl-2,3-dihydronaphtho[1,2-b]furan-4,5-diones. An Acad Bras Cienc. 2018; 90:1027-33. DOI | PubMed
  31. Dincel ED, Akdağ Ç, Kayra T, Coşar ED, Aksoy MO, Akalın-Çiftçi G, et al. Design, synthesis, characterization, molecular docking studies and anticancer activity evaluation of novel hydrazinecarbothioamide, 1, 2, 4-triazole-3-thione, 4-thiazolidinone and 1, 3, 4-oxadiazole derivatives. Journal of Molecular Structure. 2022; 1268:133710. DOI
  32. Pattanayak P, Kaliyaperumal S. Design, synthesis, characterization and in vitro antimicrobial and anthelmintic evaluation of metronidazole derivatives modified at position 1. Pharmaceutical Chemistry Journal. 2022; 56:191-6. DOI
